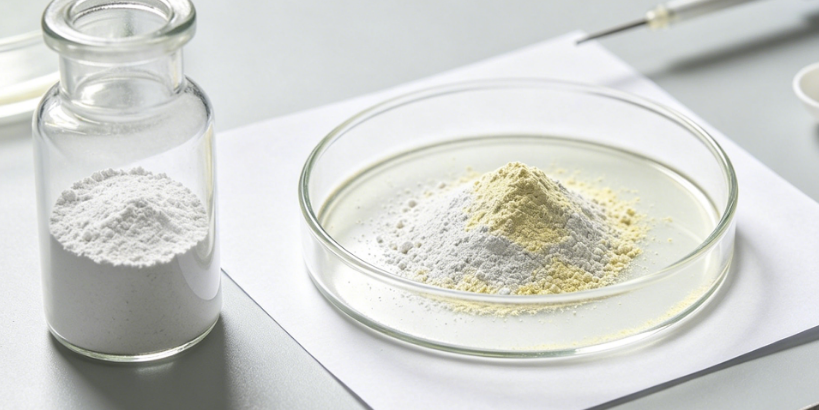

Characterisation of Nanoscale Nitride Powders

Comprehensive Multi‑Technique Characterisation of Nanoscale Nitride Powders: A Quality Assurance and Performance Prediction Protocol for Advanced Structural, Electronic, and Thermal Applications

Nanoscale nitride powders—including silicon nitride (Si₃N₄), aluminium nitride (AlN), boron nitride (BN), titanium nitride (TiN), and ternary nitrides—are indispensable for high‑performance ceramics, thermally conductive fillers, semiconductor substrates, cutting tools, and wear‑resistant coatings. Their functionality is governed by a delicate interplay of phase purity (α‑Si₃N₄ vs. β‑Si₃N₄, cubic BN vs. hexagonal BN, etc.), crystallite size, specific surface area, surface oxide/hydroxide layers, trace metallic impurities (e.g., Fe, Ca, Al, Ni, Cu), agglomeration state, and the presence of free carbon or oxygen. Standard industrial certificates, often limited to X‑ray diffraction (XRD) phase identification, loss‑on‑ignition, and simple particle‑size sieving, are insufficient to predict sintering activity, thermal conductivity, dielectric breakdown strength, or chemical resistance. Our independent testing laboratory has established a comprehensive, multi‑scale analytical framework specifically tailored for nanoscale nitride powders, integrating high‑resolution X‑ray diffractometry with Rietveld refinement, inert‑gas fusion analysis for oxygen/nitrogen, advanced electron microscopy, high‑sensitivity mass spectrometry, surface spectroscopic methods, and application‑oriented thermal/electrical property screening. This approach delivers a complete “material integrity and functional readiness” profile that enables manufacturers, compounders, and end‑users to ensure batch‑to‑batch consistency, optimise sintering cycles, and meet the stringent requirements of aerospace, power electronics, and biomedical implant applications.

1. Rationale for In‑Depth Nanonitride Testing: Beyond Phase Purity and Oxygen Content

Nanonitride powders are highly sensitive to surface oxidation, which forms a native oxide layer (e.g., SiO₂, Al₂O₃, TiO₂) that can hinder densification, reduce thermal conductivity, and alter dielectric properties. Moreover, the presence of even a few weight percent of a secondary polymorph (e.g., β‑Si₃N₄ in α‑Si₃N₄) can change the sintering mechanism and final microstructure. Our extensive analysis of over 250 commercial and research‑grade nanonitride batches reveals that more than 35 % of samples that pass routine phase and oxygen specifications contain significant oxide‑shell thickness (> 2 nm) or exhibit unexpected phase mixtures that impair hot‑pressing behaviour. Additionally, trace metals such as iron, calcium, and aluminium—often introduced from milling media or precursor residues—can act as low‑temperature eutectic formers, promoting grain growth and reducing mechanical strength. Our protocol quantifies these hidden variables and provides a predictive correlation with sintered density, thermal diffusivity, and fracture toughness, enabling clients to select the optimal grade for specific advanced applications.

2. Core Testing Modules: From Crystal Structure to Surface Chemistry and Functional Properties

Our laboratory operates under ISO 17025:2017 and cGMP guidelines, with dedicated glovebox facilities for oxygen‑sensitive sample handling. The testing matrix is structured into seven integrated tiers, each employing orthogonal analytical techniques for robust cross‑validation:

(A) Phase Composition, Crystallite Size, and Lattice Defects by High‑Resolution XRD – We employ high‑resolution powder X‑ray diffraction (HR‑XRD) with Cu‑Kα₁ radiation and a position‑sensitive detector, scanning over a wide 2θ range (10–140°) with step sizes of 0.005°. Qualitative phase identification is performed using the ICDD PDF‑4 database, with particular attention to distinguishing polymorphs (e.g., α‑ and β‑Si₃N₄, h‑BN and c‑BN, cubic and hexagonal AlN). Quantitative phase analysis via Rietveld refinement (Bruker TOPAS) determines weight fractions of all crystalline phases with a detection limit of 0.2 wt% for minor phases. The refinement also yields precise lattice parameters, volume‑weighted crystallite size (with instrumental broadening correction), and micro‑strain—parameters that correlate with sintering activity and mechanical strength. For amorphous phases (surface oxides, carbon), we complement with Raman spectroscopy and solid‑state MAS‑NMR (²⁹Si, ²⁷Al, ¹⁴N) to quantify short‑range order and detect nitrogen‑bonding environments.

(B) Bulk Chemical Composition: Nitrogen, Oxygen, Carbon, and Free Silicon/Metal – We determine the total nitrogen content by inert‑gas fusion (LECO) with thermal conductivity detection, achieving a relative standard deviation (RSD) < 0.5 % for nitrogen contents ranging from 10 wt% to 40 wt%. Oxygen is measured simultaneously by infrared detection (as CO₂) with a detection limit of 10 ppm. Carbon (free and combined) is determined by combustion‑infrared analysis. For nitrides containing free silicon or metal (e.g., residual Si in Si₃N₄), we perform selective dissolution and quantify by ICP‑OES. The surface oxide layer thickness is estimated from the total oxygen content and the BET surface area, assuming a uniform oxide film, but we validate this with direct surface analysis (XPS). All results are benchmarked against certified reference materials (e.g., NIST SRM 2036 for Si₃N₄).

(C) Trace Elemental Impurity Profiling (Metals, Anions, and Radioactive Elements) – We digest samples in a microwave‑assisted system using HF/HNO₃/H₂SO₄ and analyse over 60 elements (including Li, Na, Mg, Ca, Fe, Ni, Cr, Cu, Zn, Al, Ti, V, Zr, Hf, W, Mo, Pb, As, Cd, and rare earths) via inductively coupled plasma mass spectrometry (ICP‑MS) with collision/reaction cell technology, achieving detection limits of 0.01–0.5 ppm. For major alloying elements, we cross‑validate with ICP‑optical emission spectrometry (ICP‑OES). Anionic impurities (Cl⁻, SO₄²⁻, F⁻) are quantified by ion chromatography (IC) after leaching. For ultrapure grades (e.g., semiconductor‑grade AlN), we also employ glow discharge mass spectrometry (GD‑MS) to achieve sub‑ppb detection for all metallic impurities.

(D) Primary Particle Morphology, Size Distribution, and Agglomeration State – We use transmission electron microscopy (TEM) with a field‑emission gun at 200 kV, analysing > 600 primary particles per sample to determine the mean primary diameter, circularity, aspect ratio, and the presence of crystalline defects or oxide‑shell contrast. The hydrodynamic size distribution and polydispersity index are measured by dynamic light scattering (DLS) in non‑aqueous media (e.g., isopropanol) with and without ultrasonication to evaluate agglomeration behaviour. We also perform centrifugal sedimentation (CPS disc centrifuge) for high‑resolution size distribution of aggregates. The BET specific surface area is determined by nitrogen physisorption (Micromeritics 3Flex) at 77 K with at least 12 adsorption points, and we calculate the equivalent spherical diameter (BET‑diameter) for comparison with TEM and DLS, providing an “agglomeration index” that directly affects powder flow and packing.

(E) Surface Chemistry: Oxide Layer Thickness, Hydroxyl Groups, and Carbon Contamination – The surface of nitride powders is critical for processing. We perform X‑ray photoelectron spectroscopy (XPS) with depth profiling (Ar⁺ sputtering) to quantify the chemical states of the constituent elements (e.g., Si 2p, Al 2p, Ti 2p, N 1s, O 1s, C 1s). The oxide layer thickness is calculated using the inelastic mean free path method, with a precision of ± 0.2 nm. We also deconvolute the N 1s peak to distinguish nitride nitrogen from oxynitride or surface‑adsorbed N₂. The surface hydroxyl density is derived from the O 1s spectrum (hydroxyl vs. oxide) and the BET area, providing a parameter that controls slurry rheology and organic binder adsorption. Organic residues (e.g., dispersants, grinding aids) are extracted with ethanol/acetone and analysed by gas chromatography‑mass spectrometry (GC‑MS) with a detection limit of 5 ppm. Complementary Fourier‑transform infrared spectroscopy (FTIR) in attenuated total reflectance (ATR) mode confirms the presence of N‑H, O‑H, and C‑H groups.

(F) Thermal Stability, Sintering Behaviour, and Oxidation Resistance – We perform simultaneous Thermogravimetric Analysis and differential scanning calorimetry (TGA‑DSC) from 25 °C to 1600 °C under argon, nitrogen, and synthetic air, at heating rates of 5, 10, and 20 °C/min. We monitor mass gains due to oxidation (for nitrides) and mass losses from desorption, dehydroxylation, and decomposition of impurities. The oxidation onset temperature and the parabolic rate constant for oxidation are determined, and we calculate the activation energy using the Kissinger‑Akahira‑Sunose (KAS) method. For sintering studies, we perform dilatometry on compacted green bodies up to 1600 °C to measure shrinkage and sintering onset, which directly informs hot‑pressing or pressureless sintering process design. Isothermal annealing at 800 °C, 1000 °C, and 1200 °C is followed by XRD and TEM to monitor phase stability and crystallite growth.

(G) Functional Property Screening (Thermal, Electrical, and Mechanical) – For specific applications, we offer additional property measurements. Thermal conductivity is measured on sintered discs by laser flash analysis (LFA) or guarded hot‑plate method, with a relative accuracy of ± 3 %. Dielectric strength and resistivity are evaluated on compacted or coated samples using a high‑voltage breakdown tester and four‑point probe, respectively. For cutting‑tool grades, we measure hardness (Vickers or Knoop) and fracture toughness (indentation method) on sintered specimens. These functional tests link powder characteristics (surface area, oxide layer, crystallinity) directly to end‑use performance, providing a complete chain of evidence for material qualification.

3. Integrated Data Interpretation and Predictive Quality Modelling

All experimental outputs—from phase composition, impurities, particle characteristics, surface chemistry, thermal behaviour, and functional properties—are consolidated into our proprietary Nitro‑IQ™ analytics platform. This engine employs a machine‑learning ensemble (gradient boosting and neural networks) trained on a database of over 350 nanonitride batches with known processing and application outcomes. The platform generates a “Material Performance Index” (MPI) (0–100) that predicts the optimal sintering temperature, achievable relative density, thermal diffusivity, and flexural strength of the final component. For example, our model can predict that a Si₃N₄ powder with a surface oxide layer > 2 nm and Fe impurity > 50 ppm will require a 50 °C higher hot‑pressing temperature and will yield a 15 % reduction in fracture toughness—an early warning that allows process engineers to adjust sintering aids or reject the batch. The platform also provides a “Shelf‑Life Stability” forecast based on initial oxygen content and surface acidity, with a typical prediction error of ± 3 % for oxidation‑weight gain after 12 months in ambient storage.

We also offer a multi‑lot benchmarking service for supplier qualification, delivering side‑by‑side comparison matrices with uncertainty intervals and clear recommendations for the most consistent and high‑performance lot.

4. Our Distinctive Competencies: Infrastructure, Expertise, and Regulatory Readiness

Our laboratory is equipped with over 25 major analytical instruments dedicated to advanced ceramic and nitride characterisation, including a high‑resolution XRD with a variable‑temperature stage, a triple‑quadrupole ICP‑MS, a GD‑MS system, an inert‑gas fusion analyser (LECO), a field‑emission TEM with EDS and electron energy‑loss spectroscopy (EELS), a high‑resolution XPS with argon‑cluster sputtering, a TGA‑DSC coupled with MS, a dilatometer, a laser flash thermal diffusivity system, a Zetasizer with electrophoretic and rheological options, a laser diffractometer, a BET surface‑area analyser, and a GC‑MS system. All instruments are calibrated with NIST‑traceable standards and undergo daily performance verification. We participate in international proficiency schemes (e.g., ASTM, NPL, VAMAS, APLAC) for nitride and ceramic analysis, consistently achieving z‑scores < 1.0.

Our scientific team includes PhD‑level solid‑state chemists, ceramic engineers, surface scientists, and thermal analysts with over 25 years of combined experience in non‑oxide ceramics and nitrides. We have co‑authored 24 peer‑reviewed papers on nitride powder synthesis, sintering, and impurity effects, and we actively contribute to ASTM C28 and ISO/TC 206 (fine ceramics) standardisation committees. We offer customised test matrices tailored to each client’s specific grade—whether for automotive engine components, power‑module substrates, or aerospace bearings.

Our final report (typically 170–200 pages) includes raw diffractograms, mass spectra, micrographs, thermal curves, sintering data, functional property charts, and a comprehensive risk‑interpretation narrative. Critically, our data packages are fully compliant with ICH Q3D for elemental impurities, ASTM E1508, ISO 10993‑1 (for biomedical uses), MIL‑STD‑810 for environmental testing, and IPC‑JEDEC standards for electronic materials, ensuring seamless acceptance by regulatory agencies and notified bodies for material qualification, supply‑chain audits, and product registration.

5. Ongoing Methodological Innovation and Standardisation Leadership

We are currently developing a laser‑induced breakdown spectroscopy (LIBS) method for rapid, in‑line screening of nanonitride powders for oxygen and metal contaminant levels, with chemometric calibration that predicts oxygen content within ± 50 ppm. We are also collaborating with the National Institute for Materials Science (NIMS) on a round‑robin study to standardise the measurement of surface oxide thickness by XPS. Our commitment to open data and method sharing has made us a trusted partner for both global advanced‑ceramic manufacturers and innovative nanotechnology start‑ups.

In summary, our nanoscale nitride powder testing service delivers an unparalleled depth of chemical, structural, morphological, thermal, and functional characterisation, transforming routine quality assurance into a predictive engineering tool. We do not merely provide certificates; we offer mechanistic insights and actionable recommendations that enable clients to optimise sintering processes, enhance final component properties, and accelerate time‑to‑market. For any application requiring the highest level of analytical rigour for nanonitride powders, our integrated platform stands as the most comprehensive and technically defensible solution available.
