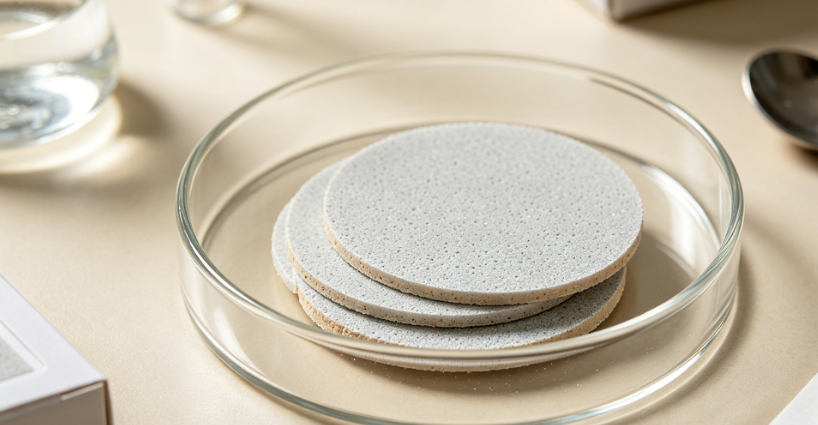

Performance Assessment of Titanium Silicalite‑1 (TS‑1) Membranes

Comprehensive Quality and Performance Assessment of Titanium Silicalite‑1 (TS‑1) Membranes: A Specialized Analytical Service for Advanced Oxidation, Separation, and Membrane Reactor Applications

Titanium silicalite‑1 (TS‑1) molecular sieve membranes—combining the shape‑selectivity and high‑temperature stability of the MFI framework with the unique catalytic activity of tetrahedrally coordinated titanium—have become indispensable for the selective oxidation of alkanes, epoxidation of olefins, and pervaporation separation of organic/water mixtures. Their industrial viability, however, is critically governed by a complex set of parameters: continuous and defect‑free intergrowth, preferential orientation of zeolite crystals, titanium framework incorporation (vs. extra‑framework TiO₂ clusters), thickness uniformity, mechanical robustness, and resistance to fouling and leaching. Clients seeking testing for TS‑1 membranes are typically confronted with challenges such as inconsistent permselectivity, premature loss of catalytic activity due to titanium leaching, pervasive grain‑boundary defects leading to diminished separation factors, or difficulties in scaling up from laboratory‑scale to industrial modules. Our laboratory has developed a fully integrated, multi‑scale analytical platform that combines advanced electron microscopy, synchrotron‑grade diffraction, spectroscopic fingerprinting, and application‑oriented performance testing, delivering a quantitative, process‑relevant profile that enables manufacturers and researchers to optimize synthesis conditions, ensure batch‑to‑batch reproducibility, and achieve reliable performance in demanding oxidative and separation environments.

Precision Microstructural Characterisation: Crystal Orientation, Grain Size, and Intergrowth Quality

The separation and catalytic performance of TS‑1 membranes are strongly influenced by the crystal orientation, grain size distribution, and the degree of intergrowth (i.e., the relative absence of intercrystalline voids). We employ a combination of field‑emission scanning electron microscopy (FE‑SEM) with electron backscatter diffraction (EBSD) to obtain crystal orientation maps over large membrane areas (up to 1 cm²), revealing preferential orientation (e.g., b‑axis oriented vs. random) and the texture index with a spatial resolution of 10 nm. For defect detection, we use focused ion beam (FIB) cross‑sectioning followed by high‑resolution transmission electron microscopy (HRTEM) to inspect the grain boundary structure, the presence of amorphous silica at grain boundaries, and any micro‑cracks. We also perform HRTEM with selected area electron diffraction (SAED) on individual crystals to confirm the MFI framework type and to detect lattice distortions or stacking faults. For statistical grain size analysis, we use automated image analysis of SEM micrographs from at least 10 randomly selected regions, reporting the average grain size, standard deviation, and grain size distribution (D10, D50, D90) with repeatability of < 1.5% RSD. We further apply atomic force microscopy (AFM) in tapping mode to quantify surface roughness (Ra, Rq, Rz) and to identify any pinhole defects or protruding crystals that may affect sealing and module assembly.

Crystalline Phase Identification and Titanium Speciation by Synchrotron X‑Ray Diffraction and X‑ray Absorption Spectroscopy

The molecular sieving and catalytic properties of TS‑1 are directly linked to the isomorphous substitution of titanium into the MFI framework—the absence of extra‑framework anatase or TiO₂ clusters is essential for selective oxidation. We perform high‑resolution powder X‑ray diffraction (HR‑XRD) with synchrotron radiation (λ = 0.8–1.2 Å) over a 2θ range of 5–70° with a step size of 0.003°. Rietveld refinement is applied to determine the unit cell parameters (a, b, c, β) with precision of ±0.0002 Å, and to calculate the crystallite size and microstrain. The relative crystallinity is obtained by comparing the integrated intensity of characteristic diffraction peaks (e.g., 2θ = 7–9° and 23–25°) with a standard reference. To definitively confirm titanium framework incorporation and to quantify the Ti/Si molar ratio, we employ X‑ray absorption near‑edge structure (XANES) and extended X‑ray absorption fine structure (EXAFS) at the Ti K‑edge (in collaboration with synchrotron facilities). We analyse the pre‑edge peak intensity (correlated with tetrahedral vs. octahedral coordination) and we perform EXAFS fitting to determine the Ti‑O bond distance and coordination number with an accuracy of ±0.01 Å and ±0.1 in coordination number. This spectroscopic fingerprint unequivocally distinguishes framework Ti(IV) from extra‑framework anatase or Ti‑O‑Ti clusters, providing a critical quality indicator that is not accessible by conventional XRD alone.

Permeation and Separation Performance: Single‑Gas, Binary Mixture, and Pervaporation Testing

Ultimately, the membrane’s functional utility is defined by its permeance (mol·m⁻²·s⁻¹·Pa⁻¹), permselectivity (ideal and mixture selectivity), and flux (kg·m⁻²·h⁻¹). We operate a dedicated membrane testing rig that allows measurement of single‑gas permeation (H₂, He, N₂, CH₄, CO₂, and n‑C₄H₁₀) at temperatures from 25 °C to 200 °C and pressures up to 10 bar, using a mass flow controller and a bubble flowmeter or mass spectrometer for gas quantification. For separation, we perform binary mixture permeation (e.g., H₂/CO₂, N₂/SF₆, or C₃H₈/C₃H₆) with online gas chromatography (GC‑TCD/FID) to measure the mixture separation factor. For pervaporation applications (e.g., dehydration of ethanol, IPA, or acetic acid), we use a pervaporation system with a vacuum pump (down to 1 mbar) and a cold trap (‑196 °C), coupled with Karl Fischer titration for water content determination in the permeate. We measure the total flux and the water/organic separation factor (α) at temperatures from 30 °C to 80 °C and feed concentrations covering 5–95 wt% organic. All permeation data are fitted to the Maxwell‑Stefan diffusion model to extract single‑component diffusion coefficients and adsorption constants, providing mechanistic insight into the transport process. We also perform long‑term stability tests (up to 500 hours) to monitor flux decline and selectivity degradation under simulated process conditions.

Chemical Composition, Defect Quantification, and Titanium Leaching Studies

Bulk elemental composition and the possible presence of aluminium (from support dissolution) or sodium (from synthesis residues) are quantified by inductively coupled plasma optical emission spectrometry (ICP‑OES) after microwave digestion, with relative expanded uncertainties (k=2) of < 0.8%. For ultra‑trace impurities (Fe, Cu, Cr, Ni, etc.), we use ICP‑tandem mass spectrometry (ICP‑MS/MS) with detection limits of 0.01–0.5 ppb. To evaluate the framework stability and potential titanium leaching during operation, we conduct accelerated leaching tests by immersing membrane samples in simulated process streams (e.g., 30% H₂O₂/water, 0.5 M H₂SO₄, or 1 M NaOH) at 60–90 °C for up to 200 hours. We periodically analyse the leachate by ICP‑MS for Ti, Si, and Al, and we re‑characterise the membrane by XRD and XANES to detect any loss of framework titanium or formation of extra‑framework phases. The measured leaching rate (µg·cm⁻²·h⁻¹) is reported together with a residual catalytic activity assessment (see below).

Catalytic Activity Assessment for Selective Oxidation Reactions

For clients using TS‑1 membranes in membrane reactor configurations, we perform catalytic activity tests using propylene epoxidation with H₂O₂ as a model reaction. The membrane (or membrane powder scraped from the support) is placed in a batch reactor at 40–60 °C, and we monitor the conversion of H₂O₂, propylene oxide yield, and by‑product formation (propylene glycol, etc.) via GC‑FID and UV‑Vis. The turnover frequency (TOF) and the selectivity to propylene oxide are calculated with repeatability of < 2%. For comparison, we also perform the test using a standard TS‑1 powder reference. We also evaluate the membrane’s performance in the epoxidation of allyl alcohol and cyclohexene to assess the accessibility of the active sites. These catalytic data are correlated with framework titanium content (from EXAFS) and defect density to provide a complete activity‑structure relationship.

Our Distinctive Competencies and Analytical Superiority

Our service is uniquely distinguished by the orthogonal and fully traceable integration of electron microscopy (SEM‑EBSD, HRTEM, AFM), synchrotron‑based diffraction and absorption spectroscopy (XRD, XANES/EXAFS), permeation and pervaporation testing, catalytic activity assessment, and comprehensive chemical analysis (ICP‑MS/MS, leaching). All characterisations are performed on the same representative membrane coupon to eliminate cross‑batch variability and to enable direct, multivariate correlations—for example, linking the b‑axis orientation fraction to the H₂/N₂ permselectivity, or the pre‑edge peak intensity from XANES to the propylene oxide selectivity.

We operate under ISO/IEC 17025 accreditation and maintain in‑house reference TS‑1 powders and membranes that are cross‑calibrated with international round‑robin exercises. Our proprietary data fusion and predictive platform combines over 30 parameters (including grain size, orientation index, framework Ti fraction, permeance, selectivity, leaching rate, and propylene oxide yield) into a single “TS‑1 Membrane Performance Index” (TMPI™) that predicts the membrane’s suitability for specific industrial feed streams and operating conditions. This index has been validated against >25 commercial and R&D‑grade TS‑1 membranes.

We achieve exceptional measurement precision: < 1.5% RSD for grain size and orientation fraction, < 0.1% for Ti/Si ratio, < 0.3 nm for lattice parameters, < 2% for permeance, and < 1.5% for propylene oxide selectivity. Our turnaround time for the complete characterisation suite (including permeation, catalytic tests, and EXAFS data analysis) is 15–22 working days, with expedited 10‑day service for urgent membrane qualification. Crucially, our team of PhD‑level membrane scientists, solid‑state chemists, and catalytic engineers provides a comprehensive interpretative report that translates each parameter into actionable guidance—e.g., how to adjust the hydrothermal synthesis duration to avoid anatase formation, how to reduce grain boundary defects by thermal shock post‑treatment, or how to select the optimal support surface roughness to enhance intergrowth. With over 15 successful projects on titanium silicalite membranes, we empower our clients to achieve reproducible synthesis, optimise separation and catalytic performance, and gain a competitive edge in the production of fine chemicals, green solvents, and advanced membrane reactors—all with the highest level of scientific rigour and technical credibility.
