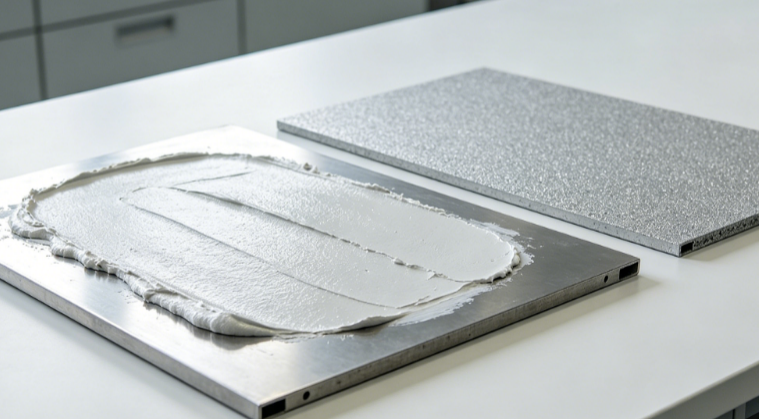

Thermal Insulation Coating Testing Services: Validating Energy‑Saving Performance & Durability

As an independent third-party testing service provider, we offer comprehensive testing for thermal insulation coatings – including solar heat reflective coatings, thermal barrier coatings, insulating paints, elastomeric reflective coatings, and high‑performance thermal insulating coatings. Thermal insulation coatings are innovative functional coatings designed to reduce heat transfer between building interiors and exteriors, lower energy consumption for cooling and heating, and protect industrial surfaces from thermal damage. These coatings achieve their insulating effect through three primary mechanisms: reflecting solar radiation (high solar reflectance), radiating absorbed heat away (high thermal emissivity), and physically reducing conductive heat transfer (low thermal conductivity). They are widely applied to building roofs and façades (cool roofs, energy‑saving exterior walls), industrial facilities (oil storage tanks, pipelines, chemical reactors), metal roofs (warehouses, factories), transportation infrastructure (containers, railway carriages), and aerospace thermal protection systems. Our accredited laboratory follows international standards (ISO 8990, ASTM C518, ASTM C177, ISO 9050, ASTM E408, GB/T 25261, JG/T 235, GB/T 10295) to deliver accurate, reproducible, and legally defensible performance data. This article outlines our thermal insulation coating testing capabilities – including scope, key test items, and standard test methods – to help manufacturers, contractors, architects, and energy auditors verify thermal performance, weather resistance, mechanical integrity, and compliance with green building codes.

1. Our Testing Scope for Thermal Insulation Coatings

We cover all major thermal insulation coating types and product forms across diverse applications:

By coating type / formulation: Solar heat reflective coatings (reflective cool coatings for roofs, exterior walls – decreases surface temperature by reflecting visible and near‑infrared sunlight, reducing heat ingress and building cooling loads); Thermal barrier insulating coatings (low‑conductivity ceramic‑based coatings – contains hollow ceramic microspheres or silica aerogel particles to create a thermal break, minimising conductive and convective heat transfer); Elastomeric reflective coatings (flexible, crack‑bridging coatings for waterproofing and thermal management – used on metal roofs, concrete surfaces, and aged bituminous membranes); Radiation heat dissipation coatings (high‑emissivity coatings for industrial heat sinks – designed to maximise thermal radiation emission from a surface, helping industrial equipment and storage tanks shed excess heat more efficiently); Insulating paints (thin‑film interior/exterior insulative coatings – multifunctional coatings that combine solar reflectivity, thermal emissivity, and moderate insulating (low‑conductivity) properties, often marketed as “ceramic insulating paints”); High‑performance aerogel‑based insulating coatings (ultra‑low thermal conductivity coatings for extreme environments – used in pipelines, LNG terminals, and industrial applications requiring minimal heat loss or gain under aggressive thermal gradients).

By application area: Building roofs (cool roof coatings – ENERGY STAR, LEED, ASHRAE 90.1); Exterior wall systems (thermal insulation composite systems, reflective façades); Industrial pipelines and equipment (thermal insulation coatings for heated, chilled, or cryogenic fluid containment – oil and gas, chemical, pharmaceutical industries); Metal roof surfaces (warehouse, factory, agricultural buildings); Storage tanks (oil storage tanks, water tanks, chemical storage vessels); Transportation (containers, railway carriages, vehicle body panels – thermal management of temperature‑sensitive cargo).

By test category: Thermal performance properties (solar reflectance – total solar reflectance or TSR, near‑infrared reflectance – NIR, thermal emissivity – ε, thermal conductivity – λ in W/(m·K), thermal resistance (R‑value – (m²·K)/W), thermal shock resistance); Physical & optical properties (hiding power / contrast ratio, colour coordinates – CIELAB, gloss, dry film thickness, density of coating film); Mechanical properties (adhesion – cross‑cut test / pull‑off test, impact resistance, flexibility, abrasion resistance, hardness – pencil hardness for coatings); Environmental & durability properties (artificial accelerated weathering – xenon arc, fluorescent UV; salt spray corrosion resistance, water resistance and water absorption, alkali resistance – for cementitious substrates, freeze‑thaw cycling – for exterior applications, thermal cycling – temperature change simulation); Chemical resistance (chemical immersion test – acids, alkalis, oils, solvents, fuels); Safety & environmental properties (VOC content – volatile organic compounds by gas chromatography, formaldehyde content, heavy metal screening – Pb, Cd, Hg, Cr⁶⁺ by ICP‑MS, fire resistance – flame spread rating, limiting oxygen index – LOI).

By regulatory framework / green building standard: GB/T 25261 (Solar heat reflecting insulation coatings for buildings – Chinese national standard); JG/T 235 (Architectural reflective thermal insulation coatings – Chinese industry standard for industrial and civil building roofing and exterior wall insulation); JC/T 1040 (Thermal reflective insulation coatings for exterior building surfaces – Chinese industry standard for flat and textured coatings); ASTM C518 (Steady‑state thermal transmission properties – heat flow meter apparatus); ASTM C177 (Steady‑state heat flux and thermal transmission properties – guarded hot plate apparatus); ASTM E408 (Total normal emissivity of surfaces – portable emissometer method); ISO 9050 (Glass in building – determination of light transmittance, solar direct transmittance, total solar energy transmittance, ultraviolet transmittance, and related glazing factors – adapted for coating spectral analysis); ISO 8990 (Thermal insulation – steady‑state thermal transmission properties – calibrated and guarded hot box); ASTM D4797 (Standard test method for gravimetric determination of non‑volatile content in coatings – for coating film density and mass analysis).

2. Key Test Items & Measurements We Perform

Our thermal insulation coating testing services are grouped into five performance domains. Each domain addresses critical properties required by international standards and green building codes (ENERGY STAR, LEED, ASHRAE 90.1).

2.1 Thermal Performance Properties

The thermal performance of insulation coatings is determined by their ability to reflect, emit, and conduct heat. We provide comprehensive measurements of all relevant thermal parameters:

Solar reflectance (total solar reflectance – TSR) – measured by UV‑Vis‑NIR spectrophotometer (PerkinElmer Lambda 950, wavelength range 300‑2,500 nm). TSR is calculated as the ratio of reflected solar radiation to incident solar radiation (weighted by the standard solar spectral distribution). TSR is the most important metric for cool roof and reflective coating applications. Requirement per GB/T 25261: TSR ≥ 0.85 for reflective insulation coatings. Lower TSR values indicate greater solar heat absorption, leading to higher surface temperatures and increased cooling loads. The test must be conducted on the coating of a specified colour (e.g., white, light‑coloured, dark‑coloured) in the dry state.

Near‑infrared (NIR) reflectance – subset of solar reflectance measured specifically in the near‑infrared region (700‑2,500 nm). Since NIR accounts for approximately 52% of total solar energy, high NIR reflectance is crucial for coatings applied to dark substrates or coloured coatings where visible reflectance is inherently low. For dark coatings (L* ≤ 40), TSR may be low, but a high NIR reflectance can still contribute to significant thermal performance.

Thermal emissivity (hemispherical emissivity – ε) – measured using a portable emissometer (Devices & Services AE1) per ASTM E408, or by reflectance spectroscopy using a Fourier transform infrared (FTIR) spectrophotometer equipped with an integrating sphere (wavelength range 2.5‑40 μm). Thermal emissivity measures a material’s ability to radiate absorbed heat away from its surface. Combined with solar reflectance, high thermal emissivity (ε ≥ 0.85) is critical for dissipating any remaining absorbed heat, particularly for coatings applied to low‑slope roofs where heat can accumulate. Requirement per GB/T 25261: ε ≥ 0.85 for effective radiative cooling.

Thermal conductivity (λ – W/(m·K)) – measured by heat flow meter (HFM) method per ASTM C518 / GB/T 10295, or guarded hot plate method per ASTM C177 / GB/T 10294. For coating materials, a free film or a coated substrate of known thickness is prepared and placed between two plates – one heated (hot plate) and one cooled (cold plate) – with a thermopile or heat flow sensor in between. After steady‑state conditions are reached, the heat flux through the specimen is measured, and thermal conductivity is calculated as λ = Q·d / (A·ΔT), where Q is the heat flow (W), d is the specimen thickness (m), A is the area (m²), and ΔT is the temperature difference (K). Thermal conductivity of conventional insulation coatings (e.g., acrylic‑based) ranges from 0.10‑0.25 W/(m·K). For advanced ceramic microsphere‑filled coatings, λ can be 0.06‑0.12 W/(m·K). For aerogel‑based coatings, λ can be as low as 0.018‑0.035 W/(m·K). Lower thermal conductivity indicates better insulating performance (reduced conductive heat transfer).

Thermal resistance (R‑value – (m²·K)/W) – calculated as R = d / λ, where d is the coating thickness (m) and λ is the thermal conductivity (W/(m·K)). The R‑value represents the coating‘s resistance to conductive heat flow. For a typical coating thickness of 0.5 mm and λ = 0.1 W/(m·K), R = 0.005 (m²·K)/W. It should be noted that thermal resistance per unit thickness of a thin coating is inherently lower than that of bulk insulation materials (e.g., mineral wool, polyurethane foam). However, the combined effect of solar reflectance and thermal emissivity often dominates the overall thermal performance for thin reflective coatings. Our report includes measured R‑value and notes the contribution of reflective vs. conductive mechanisms.

Thermal shock resistance – for coatings applied to metal surfaces or industrial equipment experiencing rapid temperature changes. Test specimens are cycled between high and low temperatures (e.g., –40°C to +150°C, 10‑50 cycles) per GB/T 17430, IEC 60068‑2‑14, ASTM D2485. After cycling, the coating is inspected for cracking, peeling, blistering, or loss of adhesion.

2.2 Optical & Physical Properties

Beyond thermal performance, the aesthetic and functional appearance of thermal insulation coatings must be verified:

Colour coordinates (CIELAB) and colour difference (ΔE*) – measured by spectrophotometer (ASTM E308, ISO 11664). Critical for architectural coatings where colour matching is required, and for calculating the effect of colour on solar reflectance (cool‑coloured coatings). For colour‑specific TSR (e.g., dark colours with low visible reflectance but high NIR reflectance), we compute both colour and reflective performance.

Contrast ratio / hiding power (opacity) – measured per ASTM D2805, ISO 6504. The ratio of reflectance over a black substrate to reflectance over a white substrate (%). Minimum requirements ensure that the coating adequately hides the substrate. For reflective coatings, hiding power is important for uniform performance irrespective of the underlying substrate colour.

Gloss (20°, 60°, 85°) – measured per ASTM D523, ISO 2813, GB/T 9754. Gloss affects aesthetics and cleanability. Classification: matte (0‑10 GU at 60°), eggshell (10‑25 GU), semi‑gloss (25‑50 GU), gloss (≥ 50 GU).

Dry film thickness (DFT) – measured by magnetic or eddy current gauge per ASTM D7091, D4138, GB/T 13452.2. Essential for R‑value calculation, product consistency, and application quality control. Minimum, average, and maximum thicknesses are recorded.

Coating film density – measured by gravimetric method (weighing free‑standing films of known dimensions). Density is used in thermal conductivity calculations when mass‑based specifications are required and for quality assurance of filled coatings (ceramic microspheres have lower density than unfilled binder, so density correlates with insulating efficiency).

Coating flexibility – per ASTM D522 (cylindrical mandrel bend test), ISO 1519. Essential for coatings applied to curved surfaces, metal roofs, or substrates subject to thermal expansion/contraction. No cracking or flaking on the bent portion.

2.3 Mechanical Properties

The durability of a thermal insulation coating depends on its ability to remain intact and adhered to the substrate over time:

Adhesion (cross‑cut test – ASTM D3359, ISO 2409, GB/T 9286) – a multi‑blade cutter is used to cut a lattice pattern (typically 1‑2 mm spacing) through the coating to the substrate. Pressure‑sensitive tape is applied over the lattice and then removed; the amount of coating removed is rated 0B (worst, >65% removal) to 5B (best, 0% removal). For architectural coatings, a rating of 4B or better is typically required.

Adhesion (pull‑off test – ASTM D4541, ISO 4624, GB/T 5210) – a dolly is adhered to the coating with a suitable adhesive, and a portable pull‑off adhesion tester pulls the dolly perpendicular to the coating surface. The force at which the coating delaminates (or the coating‑substrate interface fails) is recorded in MPa. For concrete or masonry substrates, a minimum adhesion of 1.5 MPa is typically required per GB/T 25261.

impact resistance (ASTM D2794, ISO 6272, GB/T 1732) – a falling weight impact tester (e.g., 500 g steel ball dropped from a specified height, typically 500‑1,000 mm) strikes the coated specimen. The coating is inspected for cracking, chipping, or loss of adhesion. Critical for metal roof coatings that may be subjected to hail or foot traffic.

Abrasion resistance (Taber abraser – ASTM D4060) – the coated panel is mounted on a rotating turntable, and two abrasive wheels (e.g., CS‑10, CS‑17, H‑18, etc.) are lowered onto the surface under a specified load. After a specified number of cycles (typically 500‑1,000 cycles), the mass loss (mg) or thickness loss is measured. For roofing coatings, abrasion resistance simulates foot traffic, wind‑borne particulate erosion, and cleaning.

Flexural resistance / crack bridging (for elastomeric coatings – JG/T 172) – a coated panel is bent over a mandrel of specified diameter, and the coating is examined for cracking. For elastic coatings (crack‑bridging type), the elongation at break of a free film is measured per ISO 527 (typically ≥ 100‑300%).

Hardness (pencil hardness – ASTM D3363, ISO 15184, GB/T 6739) – graded from 9B (softest) to 9H (hardest) using calibrated pencils. Typical range for exterior thermal insulation coatings: 2B to 2H.

2.4 Environmental & Durability Properties

Thermal insulation coatings must maintain their performance and appearance over years of outdoor exposure. Our accelerated and natural weathering tests simulate the effects of solar radiation, moisture, temperature changes, and atmospheric pollutants:

Artificial accelerated weathering (xenon arc – ASTM G155, ISO 4892‑2, GB/T 1865) – specimens are exposed to a xenon arc lamp that simulates the full spectrum of solar radiation (including UV, visible, and infrared light), combined with cycles of temperature, humidity, and water spray. Exposure durations typically range from 500 to 3,000 hours. Evaluated parameters after weathering: colour change (ΔE* – measured by spectrophotometer, typically ≤ 3.0 for 500‑1,000 hours), gloss retention (%), chalking (ASTM D4214), cracking (ASTM D660), blistering (ASTM D714), and flaking.

Fluorescent UV weathering (QUV – ASTM G154, ISO 4892‑3, GB/T 16422.3) – uses UVA‑340 lamps that simulate the UV portion of sunlight (280‑400 nm) without visible light. Faster screening for UV‑sensitive polymer systems (acrylics, polyester, polyurethane). Exposure duration: 500‑2,500 hours. Evaluates gloss retention, colour fade, and surface erosion.

Salt spray corrosion resistance (ASTM B117, ISO 9227, GB/T 1771) – specimens are exposed to a continuous 5% NaCl solution spray at 35°C for durations from 100 to 1,000 hours. After exposure, the coating is evaluated for blistering, rust creepage from scribe line, and loss of adhesion. Essential for coatings applied to metal substrates in coastal or industrial environments.

Water resistance (immersion – ASTM D870, GB/T 1733) – specimens are fully or partially immersed in distilled water for specified durations (24‑168 hours). The coating is inspected for blistering, softening, whitening (blushing), discolouration, and loss of adhesion.

Water absorption (ASTM D570, GB/T 1738) – a free film or coated specimen is weighed, immersed in water, removed, dried superficially, and reweighed. Water absorption (%) is calculated. High water absorption can lead to blistering, loss of adhesion, and reduced thermal performance (water has higher thermal conductivity than air).

Alkali resistance (ASTM D1308, D1647, GB/T 9265) – the coating is exposed to an alkaline solution (e.g., saturated Ca(OH)₂, lime water) for 48‑72 hours to simulate contact with cementitious substrates (fresh plaster, concrete, mortar). Evaluated for blistering, softening, loss of adhesion, and colour change.

Freeze‑thaw stability (thermal cycling) – for exterior coatings in cold climates, specimens are cycled between sub‑freezing and thawing temperatures (e.g., –20°C to +23°C, 5‑25 cycles) per ASTM D2243, D471, GB/T 9755. After cycling, the coating is inspected for cracking, delamination, loss of adhesion, and changes in flexibility. For bulk coating (liquid paint) freeze‑thaw stability (‑5°C to +23°C, 3 cycles per ASTM D2243) ensures the product can survive freezing during transport and storage.

Thermal cycling (coated panel – ASTM D2247, D6944) – for roof coatings and exterior cladding systems, the coated panel is cycled between high temperature (+70°C) and low temperature (–30°C) for multiple cycles, followed by inspection for cracking, delamination, and adhesion loss. For pipelines or industrial equipment, thermal cycling over a broader range (‑40°C to +150°C) is performed.

2.5 Chemical Resistance

For thermal insulation coatings applied to industrial tanks, pipelines, or building exteriors in polluted environments, chemical resistance is essential:

Chemical immersion / spot test (ASTM D543, D1308, ISO 2812, GB/T 9274) – specimens are immersed (or exposed to drops of reagent) in common chemicals: acids (e.g., 3% HCl, 3% H₂SO₄), alkalis (5% NaOH), organic solvents (ethanol, toluene, xylene, acetone, MEK), fuels (gasoline, diesel, kerosene), oils (lubricating oil), and detergents. Exposure durations are 24‑168 hours. Evaluated for discolouration, blistering, softening, weight loss, and loss of adhesion. The degree of chemical resistance is rated 0 (no effect) to 5 (severe damage). This test is required for coatings used in industrial zones, on storage tanks (oil/chemical), and in food processing areas (where detergents are used).

Alkali resistance (cementitious substrate) – described above in Section 2.4.

Fuel resistance (for storage tank coatings) – immersion in standard test fuels (e.g., Fuel C per ASTM D471) at specified temperature, weight change measured (≤ 5% typical). Coating must not dissolve, swell, or lose adhesion.

2.6 Fire Resistance & Flammability

Building‑applied thermal insulation coatings must meet fire safety requirements as mandated by building codes:

Flame spread index (FSI) and smoke developed index (SDI) – per ASTM E84 (Steiner tunnel test) for building materials and coatings applied to substrates. For thermal insulation coatings on walls or ceilings, the coating is applied to a substrate (e.g., calcium silicate board), and the coated panel is tested in a tunnel furnace. Classes: Class A (FSI ≤ 25, SDI ≤ 450), Class B (FSI ≤ 75), Class C (FSI ≤ 200). For roofing coatings, UL 790 / ASTM E108 (external fire test – Class A, B, or C) simulates fire exposure from the exterior side (burning brands, spread of flame).

Limiting oxygen index (LOI – ASTM D2863, ISO 4589‑2, GB/T 2406) – measured on a free film of the coating or on a coated textile/plastic substrate. LOI is the minimum oxygen concentration (vol%) in a mixture with nitrogen that will support combustion. For flame‑retardant coatings, LOI ≥ 28‑35% is typical.

Cone calorimeter test (ISO 5660, ASTM E1354) – measures heat release rate (HRR, kW/m²), total heat released (THR, MJ/m²), peak heat release rate (PHRR, kW/m²), and time to ignition (s). For coatings applied to combustible substrates (e.g., wood, foam), the cone calorimeter method is essential for quantifying flame spread and smoke production (provides a more detailed assessment of fire behaviour than tunnel‑type tests).

Non‑combustibility test (GB 8624 classification) – for inorganic thermal insulation coatings, tested per GB/T 5464 (ISO 1182). Non‑combustibility indicates that the coating contributes no significant heat release when exposed to a furnace at 750°C. The coating is classified as A1 or A2 (non‑combustible) in the GB 8624 building materials fire classification system. In the European system (EN 13501‑1), A1 or A2 is classified as “non‑combustible”.

Flame spread on a vertical surface (GB/T 8626 – Vertical flame spread test) – per GB 8624, B1 (难燃) classification also requires passing a vertical flame propagation test (GB/T 8626). The coating is applied to a substrate, and the top edge of the sample is exposed to a 50‑200 mm burner flame for 25 seconds; the vertical propagation distance (mm) and after‑flame time are recorded.

2.7 Safety & Environmental (Hazardous Substance) Testing

For architectural thermal insulation coatings, compliance with national standards for hazardous substances is mandatory, particularly for interior applications:

VOC content (volatile organic compounds – ASTM D3960, ISO 11890‑1/-2, GB/T 23986, GB/T 23985, GB 18582) – measured by gas chromatography (GC‑FID) with an internal standard, or by difference in weight of non‑volatile matter. Unit: g/L (grams of VOC per litre of coating, minus water). Regulatory limits per GB 18582‑2020: interior wall water‑based coatings ≤ 80 g/L; exterior wall water‑based coatings ≤ 90 g/L; decorative panel coatings ≤ 180 g/L.

Formaldehyde content (ASTM D5582, ISO 17226, GB/T 23993, GB 18582) – acetylacetone colorimetric method or HPLC‑UV. Limit: ≤ 50 mg/kg (GB 18582‑2020).

Heavy metals (Pb, Cd, Hg, Cr⁶⁺ – ASTM D3335, ISO 17072, GB/T 30647, GB 18582) – ICP‑MS, ICP‑OES, or AAS. Limits per GB 18582: Pb ≤ 90 mg/kg, Cd ≤ 75 mg/kg, Hg ≤ 60 mg/kg, Cr⁶⁺ ≤ 60 mg/kg. Additional heavy metals may be restricted for REACH SVHC, RoHS, and California Proposition 65.

Benzene, toluene, ethylbenzene, xylene (BTEX – GB/T 23990, ISO 11890‑2, GC‑MS) – Limit for benzene series (sum of benzene, toluene, ethylbenzene, xylene) ≤ 100 mg/kg per GB 18582‑2020. For industrial coatings (pipeline, tank), BTEX limits may be higher depending on the specification.

APEO (alkylphenol ethoxylates – GB/T 31414, ISO 18254‑1) – LC‑MS/MS. Limit (GB 18582‑2020): sum of octylphenol ethoxylates (OPEO) and nonylphenol ethoxylates (NPEO) ≤ 1,000 mg/kg.

Phthalate plasticisers (DEHP, DBP, BBP, DINP, DIDP, DNOP – GC‑MS, EN 15742, ISO 14389) – test when the coating contains plasticisers (e.g., some elastomeric coatings). RoHS restricts DEHP, DBP, BBP, DIBP in electrical/electronic equipment coatings (each ≤ 0.1%).

Free TDI / HDI (for polyurethane coatings – GB/T 18446, ISO 10283) – limit ≤ 0.2% by weight.

3. Standard Test Methods We Apply

All tests are performed according to internationally recognised standards. Our laboratory is ISO/IEC 17025 accredited and equipped with spectrophotometers (UV‑Vis‑NIR), emissometers, heat flow meters (HFM), guarded hot plate apparatus, weathering chambers (xenon arc, QUV), salt spray chambers, adhesion testers, universal testing machines, gas chromatographs (GC‑MS), ICP‑MS, FTIR spectrometers, cone calorimeters, and tunnel furnaces.

3.1 Thermal Performance Standards

ASTM E903 (Solar absorptance, reflectance, and transmittance of materials using integrating spheres).
ASTM E1980 (Calculation of solar reflectance index – SRI – for low‑slope roofs).
ASTM E408 (Total normal emissivity of surfaces using a portable emissometer).
ASTM C518 (Steady‑state thermal transmission properties by heat flow meter apparatus).
ASTM C177 (Steady‑state heat flux and thermal transmission properties by guarded hot plate apparatus).
ISO 9050 (Glass in building – Determination of light transmittance, solar direct transmittance, total solar energy transmittance, ultraviolet transmittance, and related glazing factors – adapted for coatings).
GB/T 25261‑2018 (Solar heat reflecting insulation coatings for buildings).
JG/T 235‑2014 (Architectural reflective thermal insulation coatings).
JC/T 1040‑2020 (Thermal reflective insulation coatings for exterior building surfaces).
GB/T 10295‑2008 (Steady‑state thermal resistance and related properties of thermal insulation materials – Heat flow meter method).
GB/T 10294‑2008 (Steady‑state thermal resistance and related properties of thermal insulation materials – Guarded hot plate method).
ISO 8990:1994 (Thermal insulation – Steady‑state thermal transmission properties – Calibrated and guarded hot box).

3.2 Optical & Physical Properties Standards

ASTM D2805 (Hiding power of paints by reflectometry).
ASTM D523 (Specular gloss).
GB/T 9754 (Determination of gloss – 20°, 60°, 85°).
ASTM D7091 (Dry film thickness – non‑destructive).
ASTM D522 (Mandrel bend test of attached organic coatings).

3.3 Mechanical Properties Standards

ASTM D3359 (Cross‑cut adhesion – tape test).
ASTM D4541 (Pull‑off strength of coatings).
GB/T 5210 (Pull‑off test for adhesion).
GB/T 9286 (Cross‑cut test).
ASTM D2794 (Resistance of organic coatings to the effects of rapid deformation – impact).
ASTM D4060 (Abrasion resistance of organic coatings by Taber abraser).
ASTM D3363 (Pencil hardness).

3.4 Environmental & Durability Standards

ASTM G155 (Xenon arc weathering).
ASTM G154 (Fluorescent UV weathering).
ASTM B117 (Salt spray).
ASTM D870 (Water immersion).
ASTM D2247 (Water resistance – humidity chamber).
ASTM D1308 (Alkali resistance).
ASTM D2243 (Freeze‑thaw stability of coatings).
GB/T 1733 (Water resistance).
GB/T 17657 (Test methods of wood‑based panels and decorative surface bonded paper – abrasion resistance).
GB/T 9265 (Alkali resistance of architectural coatings).
GB/T 9755 (Synthetic resin emulsion exterior wall coatings – freeze‑thaw stability).

3.5 Chemical Resistance Standards

ASTM D543 (Chemical resistance of plastics – immersion method – adapted for coatings).
ASTM D1308 (Effect of household chemicals on clear and pigmented organic finishes).
GB/T 9274 (Chemical resistance of coating films – spot test method).

3.6 Fire & Flammability Standards

ASTM E84 (Surface burning characteristics of building materials – Steiner tunnel).
ASTM E108 (Fire tests of roof coverings).
ASTM D2863 (Limiting oxygen index – LOI).
ISO 5660 (Reaction‑to‑fire tests – heat release, smoke production, and mass loss rate – cone calorimeter).
GB 8624 (Classification of burning behaviour of building materials and products).
GB/T 5464 (Non‑combustibility test).
GB/T 8626 (Vertical flame propagation test).

3.7 Safety & Environmental Standards

GB 18582‑2020 (Limits of harmful substances in architectural wall coatings).
ASTM D3960 (Determination of VOC in paints).
GB/T 23986 (VOC – GC method).
GB/T 23993 (Formaldehyde – acetylacetone spectrophotometric method).
GB/T 30647 (Heavy metals in coatings – ICP‑MS).
GB/T 23990 (Benzene series in coatings – GC).
GB/T 31414 (APEO – LC‑MS/MS).

4. Why Choose Our Third‑Party Thermal Insulation Coating Testing Services?

As an independent laboratory, we provide unbiased, accurate, and legally defensible performance data. Our advantages include:

ISO/IEC 17025 accreditation – Our thermal insulation coating testing (GB/T 25261, JG/T 235, ASTM C518, ASTM E408, ISO 8990, GB 18582) is CNAS and CMA accredited, with regular participation in proficiency testing (e.g., ASTM E903 round robins).

Specialised thermal characterisation equipment – We operate UV‑Vis‑NIR spectrophotometers (PerkinElmer Lambda 950, 300‑2,500 nm) with integrating spheres for solar reflectance and spectral analysis; portable and laboratory emissometers (Devices & Services AE1) for thermal emissivity (ε); heat flow meters (HFM) and guarded hot plate apparatus for thermal conductivity (λ) and R‑value measurements.

Complete test portfolio – Thermal, mechanical, chemical, environmental, and safety testing – all under one roof. One provider for all your coating qualification needs.

Fast turnaround – Routine thermal performance testing (TSR, ε, λ) typically completed within 3‑5 business days; full certification programmes (GB/T 25261, JG/T 235) in 2‑3 weeks; accelerated weathering (500‑1,000 hours) in 4‑6 weeks.

Detailed reporting – Reports include reflectance spectra (UV‑Vis‑NIR), TSR, ε, λ, R‑value, colour coordinates (ΔE* before/after weathering), salt spray photographs, adhesion ratings, VOC chromatograms, and clear pass/fail conclusions against GB/T 25261, JG/T 235, and EN 13501‑1 fire classification.

Confidentiality – Full protection of your coating formulation, functional additive package (ceramic microspheres, aerogel, pigments), and proprietary production data.

Consultative support – Our coating scientists assist with formulation optimisation (balancing solar reflectance and thermal emissivity against colour requirements), interpret borderline performance (NIR reflectance for dark colours, R‑value of thin films), and advise on substrate preparation and coating application methods.

Whether you need to certify a new cool roof coating to GB/T 25261, qualify an industrial pipeline coating for chemical resistance and high‑temperature performance, validate the thermal performance of a reflective exterior wall coating, or screen a novel aerogel‑based insulation coating for construction applications, our thermal insulation coating testing experts are ready to deliver reliable, actionable results.

Get Started with Your Thermal Insulation Coating Testing Project

Contact our team with your coating type (solar reflective, thermal barrier, elastomeric, insulating paint), target specification (GB/T 25261, JG/T 235, ASTM, EN, custom), required test items (TSR, ε, λ, adhesion, weathering, VOC, fire rating), and colour range. We will provide a detailed quotation, sample submission guidelines (minimum coating quantity 2‑5 L for liquid paints, substrate and thickness requirements), conditioning recommendations (23±2°C, 50±5% RH for ≥ 24 hours), and a testing schedule. Let us help you quantify the energy‑saving potential and long‑term durability of your thermal insulation coatings for green buildings and industrial applications.

This article provides an overview of our thermal insulation coating testing capabilities. For specific test methods, sample quantity, and pricing, please request a tailored service proposal.
