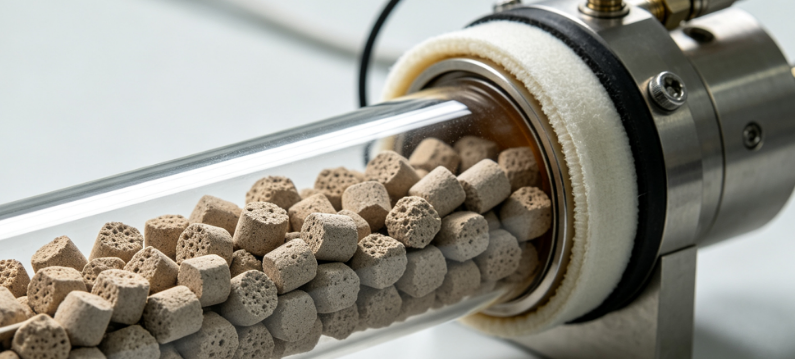

Performance Evaluation of SCR Catalysts

Advanced Characterization and Performance Evaluation of SCR Catalysts – Specialized Testing Services

Selective catalytic reduction (SCR) of nitrogen oxides (NO_x) using ammonia or urea is the benchmark technology for abating NO_x emissions from stationary sources (power plants, industrial boilers, waste incinerators) and mobile sources (diesel engines). Commercial SCR catalysts, typically based on V₂O₅–WO₃/TiO₂ (vanadia‑based), Fe‑ or Cu‑exchanged zeolites (e.g., Fe‑ZSM‑5, Cu‑SSZ‑13, Cu‑SAPO‑34), or novel Mn‑ and Ce‑based mixed oxides, are complex multi‑component solids whose performance is governed by the dispersion of active phases, oxidation state of redox centres, surface acidity, pore architecture, and resistance to poisoning by alkali metals, phosphorus, sulfur, and hydrocarbons. If you are searching for SCR catalyst testing, you are likely at a decisive point where comprehensive, multi‑dimensional characterisation and realistic performance validation are essential for quality control, competitive benchmarking, deactivation diagnosis, or process optimisation. This article details our full‑spectrum analytical and catalytic testing platform, the technical depth we deliver, and the distinct advantages that position us as a premier partner for catalyst manufacturers, emissions control companies, and environmental compliance laboratories worldwide.

The Scientific Imperative for Holistic SCR Catalyst Testing

SCR catalysts operate under demanding conditions—high gas velocities, wide temperature windows (150–550 °C), variable SO₂ and H₂O levels, and the presence of ash and trace contaminants. Their activity, selectivity to N₂, and NH₃ slip are influenced by a delicate interplay of factors: the vanadia speciation (polymeric vs. monomeric V⁵⁺ sites) and reducibility; for zeolite‑based catalysts, the location and exchange degree of Cu or Fe ions and their stability under hydrothermal aging; the surface acid site distribution (Brønsted vs. Lewis) which governs NH₃ adsorption; and the evolution of pore structure due to sintering or pore blockage. Moreover, deactivation mechanisms such as alkali poisoning, sulfation, and phosphorus fouling require specific diagnostic tools. A single technique—such as BET or XRD—cannot capture this complexity. Therefore, a systematic, tiered testing strategy that integrates bulk and surface chemical analysis, structural and textural characterisation, and dynamic reactor testing under simulated feed conditions is essential. Our service is architected to provide precisely this integrated view, enabling you to correlate catalyst properties with performance and to make informed decisions for formulation, regeneration, or replacement.

Our Comprehensive Analytical and Catalytic Testing Capabilities for SCR Catalysts

We deploy a broad suite of complementary techniques, each optimised to address a specific aspect of SCR catalysts—from atomic‑scale active sites to full‑scale monolithic performance.

1. Bulk and Surface Chemical Composition: X‑ray fluorescence (XRF) and inductively coupled plasma optical emission spectrometry (ICP‑OES) are used to quantify the total loading of active metals (V, W, Mo, Fe, Cu, Mn, Ce) and promoters, as well as poison elements (Na, K, P, Ca, Mg, Zn, S) in fresh, spent, and regenerated catalysts. For surface enrichment/depletion, we use X‑ray photoelectron spectroscopy (XPS) to determine the surface atomic ratios, the oxidation states of vanadium (V⁵⁺, V⁴⁺, V³⁺), copper (Cu⁺/Cu²⁺), and iron (Fe²⁺/Fe³⁺), and the chemical state of poisoning elements (e.g., sulfates, phosphates). We also provide depth profiling via argon cluster sputtering to differentiate surface contamination from bulk composition.

2. Crystallographic Phase and Structural Integrity: High‑resolution powder X‑ray diffraction (HR‑XRD) with Rietveld refinement identifies the support phase (anatase TiO₂, zeolite topology, etc.), quantifies crystalline impurity phases (e.g., WO₃, V₂O₅ crystallites), and monitors structural degradation (loss of zeolite crystallinity, anatase‑to‑rutile transformation) after hydrothermal aging or exposure to poisons. For zeolite‑based catalysts, we use synchrotron XRD to detect subtle changes in unit cell parameters and to locate extra‑framework cations via difference Fourier maps.

3. Textural Properties and Pore Architecture: Nitrogen physisorption at 77 K provides BET surface area, total pore volume, and pore‑size distribution (DFT/NLDFT) for both powder and monolith samples. For zeolitic catalysts with microporosity, we complement with argon physisorption at 87 K and CO₂ adsorption at 273 K to assess ultramicropores. We measure mercury intrusion porosimetry for macropore structure of honeycomb monoliths, and helium pycnometry for true density, enabling calculation of porosity and tortuosity—critical for diffusion‑limited reactions.

4. Surface Acidity and NH₃ Adsorption Behaviour: We quantify acid site density and strength by temperature‑programmed desorption of ammonia (NH₃‑TPD), and we distinguish Brønsted vs. Lewis acid sites using pyridine‑adsorbed DRIFTS (diffuse reflectance infrared Fourier transform spectroscopy). For zeolite catalysts, we perform NH₃‑TPD with mass spectrometry to detect multiple desorption peaks corresponding to different acid sites. We also measure NH₃ adsorption isotherms to determine the adsorption capacity and affinity under SCR‑relevant temperatures.

5. Redox Properties and Oxygen Storage: The reducibility of vanadia or copper/iron species is key to the catalytic cycle. We use temperature‑programmed reduction with hydrogen (H₂‑TPR) to determine the reduction temperature and degree of reduction for V, Cu, Fe, and Ce species. Temperature‑programmed oxidation (TPO) assesses the oxidation state and coke combustion behaviour. For Ce‑based catalysts, we measure oxygen storage capacity (OSC) by pulse injection of O₂ after CO reduction.

6. Catalytic Performance Testing under Realistic Conditions: Our custom‑built, automated fixed‑bed and monolith reactor systems are equipped with precise mass flow controllers, a water saturator, and on‑line FTIR or UV‑DOAS analyzers for simultaneous measurement of NO, NO₂, N₂O, NH₃, and H₂O in the feed and product streams. We test catalysts at temperatures from 150 to 550 °C, with feed compositions typical of diesel exhaust (e.g., NO 500 ppm, NH₃ 500 ppm, O₂ 10%, H₂O 5%, CO₂ 10%, optional SO₂ 50–200 ppm). We determine NO_x conversion, NH₃ slip, N₂ selectivity, and apparent reaction kinetics. We also perform SCR‑to‑N₂ selectivity measurements to detect N₂O formation, a potent greenhouse gas.

7. Aging and Deactivation Studies: We simulate accelerated hydrothermal aging at 600–800 °C in 10% H₂O/air for up to 100 hours, and chemical poisoning by impregnation with alkali, alkaline‑earth, or phosphorus precursors followed by calcination. After aging, we re‑evaluate all characterisation and performance metrics to quantify deactivation rates and identify the dominant mechanisms. We also test regeneration protocols (e.g., acid washing, thermal treatment) and assess recoverability.

8. Monolith and Coating Characterisation (for Cordierite or Fe‑Cr‑Al supports): For commercial monolithic SCR catalysts, we perform washcoat loading analysis by weight difference and chemical digestion, adhesion tests (ultrasonic or air‑jet), and pressure drop measurements. We use optical microscopy and SEM‑EDS to evaluate washcoat thickness uniformity, cracking, and plugging.

Advanced Diagnostics – Beyond Conventional Catalyst Testing

Our service transcends routine testing by integrating experimental data with kinetic modelling and computational chemistry. We derive global reaction rate expressions for the standard SCR, fast SCR, and NH₃ oxidation reactions, including the effect of internal/external mass transfer. We also perform transient response studies (step changes in feed) to extract adsorption/desorption parameters and surface coverage dynamics. For fundamental insight, we offer operando DRIFTS coupled with mass spectrometry to monitor surface intermediates (NH₄⁺, nitrate, nitrite, amide) during reaction, elucidating the reaction mechanism. For zeolite catalysts, we provide solid‑state NMR to probe the local environment of Al and Cu, and electron paramagnetic resonance (EPR) to quantify isolated Cu²⁺ sites and their coordination.

Moreover, we use machine learning algorithms to correlate synthesis parameters and characterization data with catalytic performance, enabling predictive optimization. We also provide high‑throughput screening of multiple catalyst compositions using a parallel reactor system, drastically reducing development time.

Our Distinctive Advantages in SCR Catalyst Testing

Our laboratory has established a strong reputation in emission control catalysis, and we offer several unique strengths:

Advantage 1 – Fully Integrated One‑Stop Platform: We house all essential instruments—from XRF, ICP, XRD, XPS, BET, and TPR/TPD systems to multiple reactor rigs, FTIR, and MS—under one ISO‑accredited roof. This ensures consistent sample handling, eliminates cross‑contamination and logistics delays, and enables seamless correlation of data across techniques.

Advantage 2 – Realistic Feed Simulation with Fast Response: Our reactor systems can mimic diesel and coal‑fired flue gas compositions with precise humidity and contaminant control. The on‑line FTIR analyzers provide second‑by‑second concentration data, allowing accurate transient and steady‑state kinetic measurements.

Advantage 3 – Unmatched Depth in Poison and Deactivation Analysis: We combine chemical digestion with ICP‑MS, XPS, SEM‑EDS, and XRD to provide a complete picture of poison accumulation and its effect on active sites and structure. We can differentiate surface vs. bulk poison and correlate with activity loss.

Advantage 4 – Expert Interpretation and Regulatory Benchmarking: Our team includes specialists with industrial and academic experience in SCR technology. We provide a comprehensive report that not only presents data but also interprets it in the context of real‑world operation, compares performance to regulatory requirements (e.g., Euro VI, EPA), and offers practical recommendations for lifetime extension or process optimisation.

Advantage 5 – Rapid Turnaround with Agile Communication: Most projects are completed within 10–14 working days, with expedited services available. You are assigned a dedicated project scientist who provides weekly updates, shares preliminary findings, and consults on any unexpected results. We also offer interim reports for long‑term aging tests.

Advantage 6 – Global Logistics with Confidentiality: With sample intake hubs in North America, Europe, and Asia‑Pacific, we simplify international shipping. Our secure portal ensures data protection and easy access to final reports (PDF, Excel, raw data). We are fully prepared to sign non‑disclosure agreements.

Who Benefits from Our Services

Our testing solutions serve a wide range of clients: SCR catalyst manufacturers for product development and quality assurance; power plants, cement plants, and waste‑to‑energy facilities needing to evaluate catalyst life and plan regeneration; automotive and diesel engine companies validating after‑treatment systems; environmental consultancies performing compliance audits; and research institutes exploring novel SCR formulations. We also support regulatory agencies requiring independent performance verification.

Performance Benchmarks and Technical Specifications

To illustrate the precision of our measurements, we highlight typical performance indicators:

- NO_x conversion reproducibility: ± 1.5% absolute at 90% conversion (n=3).
- NH₃ slip detection: < 1 ppm by FTIR.
- XPS energy resolution: ≤ 0.45 eV, enabling clear deconvolution of V 2p and Cu 2p peaks.
- BET surface area precision: ± 0.5 m²/g for reference zeolites.
- ICP‑OES detection limits: < 0.1 ppm for most metals.
- H₂‑TPR reproducibility: peak temperature within ± 2 °C.
- NH₃‑TPD peak area RSD: ≤ 2%.
- Hydrothermal aging control: temperature ± 1 °C, steam flow ± 1%.

These capabilities ensure that even subtle performance changes—such as a 2% loss in conversion or a 0.1 eV shift in binding energy—are reliably detected and quantified.

How to Initiate a Testing Project

Engaging our service is straightforward. It begins with a complimentary consultation where we discuss your catalyst type (vanadia‑based, zeolite, or other), its history (fresh, aged, poisoned), your specific objectives (benchmarking, deactivation analysis, optimisation), and relevant operating conditions. We then propose a tailored testing matrix with clear cost and timeline. After your approval, we provide detailed sample submission guidelines (quantity, form, packaging). Upon receipt, we perform a preliminary check and launch the workflow. You receive regular updates and a final comprehensive report with expert interpretation, followed by an optional debriefing session.

Quality Assurance and Ethical Standards

Our laboratory operates under ISO 9001 and ISO 17025 quality systems. All data are recorded in electronic lab notebooks with full traceability. We follow strict safety and environmental protocols for handling catalysts and gases. We are committed to unbiased, transparent reporting and to protecting your proprietary information.

Conclusion – Accelerate Your SCR Catalyst Development and Troubleshooting with Expert Characterisation

SCR catalysts are the cornerstone of NO_x abatement, and their reliable performance is essential for environmental compliance and operational efficiency. Our comprehensive testing service provides the structural, chemical, and dynamic performance insights needed to validate new formulations, diagnose deactivation, and extend catalyst lifetime. We combine advanced analytics with deep technical expertise to deliver not just data, but actionable understanding.

We invite you to contact our specialist team to discuss your SCR catalyst characterisation needs. With our proven track record in emission control catalysis, we are confident we can support your R&D, quality control, and field performance objectives.

Request your free initial consultation today and discover how our integrated, expert‑led testing services can help you achieve superior SCR catalyst performance and durability.
