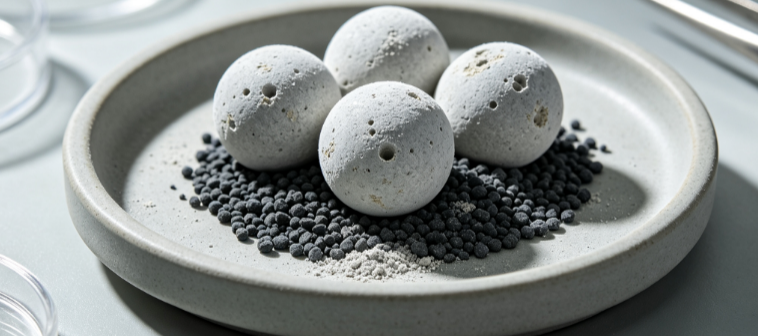

Assessment of Heat Storage Balls for Sulfuric Acid Converters

Comprehensive Performance Assessment of Heat Storage Balls for Sulfuric Acid Converters: Advanced Testing and Diagnostic Solutions

Heat storage balls—commonly fabricated from high‑alumina ceramics, cordierite, mullite, or silicon carbide–based refractories—are critical packing components in the catalytic converter beds of sulfuric acid production plants. Their primary functions include thermal buffering during exothermic SO₂ oxidation, uniform gas flow distribution, and mechanical support for vanadium‑based catalyst layers. However, prolonged exposure to aggressive process conditions—namely high temperatures (450–650 °C), SO₂/SO₃ atmospheres, acid mist condensation, and cyclic thermal stresses—inevitably induces material degradation, manifested as spalling, densification, alkali‑sulfate attack, or structural collapse. Such deterioration directly compromises conversion efficiency, increases pressure drop, and raises the risk of unplanned shutdowns. Our laboratory offers a fully integrated, multi‑parameter testing regime for heat storage balls, extending from basic geometric and crush‑strength checks to advanced microstructural, thermo‑mechanical, and chemical compatibility assessments. We deliver actionable insights that enable predictive maintenance, supplier qualification, and life‑cycle extension of sulfuric acid converter internals.

Why Dedicated Testing of Heat Storage Balls Is Imperative for Plant Reliability

Operators and maintenance engineers searching for heat‑storage‑ball testing typically face one or more critical pain points: unexplained increase in converter pressure drop, localized bed hot spots, catalyst dusting, or premature ball fragmentation during turnaround inspections. These symptoms often trace back to subtle but progressive material changes—phase transformations in the aluminosilicate matrix, accumulation of iron or vanadium oxides, alkali‑induced eutectic melting, or thermal fatigue cracking—that are not detectable by visual inspection alone. Our service provides a systematic, failure‑mode‑based diagnostics approach, quantifying the residual performance margin of used balls and benchmarking new batches against ASTM, ISO, or plant‑specific acceptance criteria. By identifying the root causes of degradation, we empower clients to make evidence‑based decisions on replacement scheduling, operational parameter adjustments, and refractory selection for future retrofits.

Analytical Arsenal: From Mechanical Integrity to Sub‑Microscopic Evolution

Our testing protocol for sulfuric converter heat storage balls is structured into four complementary tiers, each addressing distinct performance dimensions:

1. Physical and geometric characterization begins with dimensional accuracy (diameter, height, and sphericity) measured by laser‑based optical sorting, followed by bulk density and apparent porosity determination via Archimedes’ principle (ASTM C20) and water absorption under vacuum. We perform crushing strength (individual ball and bulk crush) using a universal testing machine with precision load cells, delivering force‑to‑fracture values (kN) and statistical Weibull modulus to evaluate mechanical reliability. For wear resistance, we conduct abrasion and attrition tests in a rotating drum (ASTM C704), quantifying mass loss after controlled impacting cycles.

2. Thermal and thermo‑mechanical performance is evaluated through coefficient of thermal expansion (CTE) measurement via push‑rod dilatometry from room temperature to 1000 °C, identifying anisotropic expansion and potential phase transitions. We perform thermal shock resistance using water‑quench (ΔT up to 800 °C) and air‑cooling protocols, recording retained strength and crack density. Our thermal conductivity measurement (laser flash or guarded hot‑plate, depending on porosity) provides data essential for heat‑transfer modeling within the converter bed, and we offer specific heat capacity (Cp) by differential scanning calorimetry (DSC) to support dynamic simulations.

3. Mineralogical and microstructural interrogation leverages powder X‑ray diffraction (PXRD) with Rietveld quantification to identify and quantify crystalline phases—including corundum, mullite, cristobalite, and secondary reaction products such as alkali‑aluminosilicates or iron sulfates. For used balls, we employ scanning electron microscopy (SEM) coupled with energy‑dispersive X‑ray spectroscopy (EDS) to map elemental distribution and detect penetration of sulfur, iron, vanadium, or sodium into the ball’s interior. Electron probe microanalysis (EPMA) further resolves compositional gradients at 1‑μm spatial resolution, while X‑ray micro‑computed tomography (µ‑CT) visualizes internal porosity, microcracks, and spallation zones in 3D without destructive sectioning.

4. Chemical compatibility and corrosion simulation is performed under controlled atmospheres (SO₂, SO₃, O₂, H₂O vapour) in a custom‑built high‑temperature corrosion rig, where heat‑storage ball coupons are exposed to synthetic gas mixtures replicating converter inlet conditions. Post‑exposure, we quantify sulfur uptake, alkali enrichment, and changes in flexural strength. We also offer acid solubility tests (H₂SO₄ at various concentrations) to assess vulnerability to acid condensation during start‑up or off‑gas excursions, a frequent cause of premature bonding and bed agglomeration.

High‑Level Correlative Insights: Linking Structure to Converter Performance

Beyond isolated parameters, we provide integrated degradation modelling that correlates microstructural evolution with predicted converter hydraulic behaviour. Using our data, we can calculate effective thermal diffusivity decay, pressure‑drop increase due to particle rounding and fines generation, and the residual creep‑rupture life under cyclic operational loads. We have developed proprietary damage progression indices (DPI) that score each tested batch on a 0–100 scale, enabling direct comparison between different suppliers, production lots, and service histories. This holistic view transforms analytical results from mere numbers into a decision‑support tool for maintenance planning and capital expenditure prioritisation.

Regulatory Alignment and Quality Assurance

All test methods are performed in accordance with ASTM C20, C133, C704, E1461, and ISO 5013 standards, with full traceability to NIST‑certified reference materials. Our laboratory holds ISO/IEC 17025:2017 accreditation for mechanical and thermal testing, and we maintain in‑house calibration schedules for all furnaces, load cells, and thermocouples. For each test campaign, we issue a certified inspection report that includes measurement uncertainties, standard deviations, and comparator limits based on your specific converter design. Where plant‑specific acceptance criteria are not predefined, our metallurgists and chemical engineers assist in deriving custom specification limits based on historical performance and industry best practices.

Our Competitive Advantages in Heat Storage Ball Assessment

Unmatched material expertise: Our team includes ceramic engineers with over two decades of experience in refractory failure analysis, specifically within sulphuric acid and metallurgical roaster environments. We do not treat heat‑storage balls as generic ceramics; we understand the reaction kinetics of sulfate‑salt infiltration, the role of alkali impurities from upstream gas, and the synergistic effects of thermal cycling and compressive load. This domain knowledge translates into interpretive reports that not only state the numerical results but also explain their operational significance—for example, correlating a 12 % drop in crushing strength with a predicted remaining service life of 18 months under your specific temperature profile.

Comprehensive one‑stop service: Unlike specialized labs that handle only mechanical or only chemical analyses, we perform all tests under one roof, eliminating the logistics of splitting samples, coordinating multiple vendors, and reconciling inconsistent reporting formats. You receive a single, harmonised data package with cross‑referenced results, saving time and reducing administrative burden.

Fast turnaround with optional expediting: Our standard testing cycle (from sample receipt to final report) is 8–12 working days for a full mechanical + thermal + microstructural package. For urgent plant shutdown scenarios, we offer a 48‑hour emergency service focusing on critical parameters (crush strength, porosity, and phase analysis) to support rapid go/no‑go decisions.

Global material benchmarking database: Over the past decade, we have tested heat‑storage balls from more than 30 manufacturers worldwide, accumulating a proprietary performance database that includes long‑term trends (up to 8 years) under various process conditions. This enables us to provide benchmarking against industry peers and supplier‑specific consistency evaluations, an invaluable aid for procurement and quality assurance.

End‑to‑End Service Workflow: From Sample Submission to Strategic Recommendations

We begin every engagement with a free scoping consultation—via video conference or on‑site visit—to understand your converter configuration, historical issues, and specific testing objectives (e.g., supplier qualification, failure investigation, or routine monitoring). We then design a custom test plan, specifying sampling protocols (number of balls, location within bed, and handling precautions for used balls containing sulfuric acid residue). Upon sample arrival, we conduct a receipt inspection documenting physical condition, followed by parallel testing streams to minimise total duration.

Data integration is a key differentiator: our senior engineers synthesise results from all techniques into a comprehensive diagnostic narrative, complete with annotated micrographs, diffractograms, and thermal curves. We include recommended corrective actions—such as adjusting pre‑heating ramp rates, improving mist elimination upstream, or changing ball material composition—backed by quantitative projections of expected improvement.

After report delivery, we remain available for a 30‑day free follow‑up to clarify results, discuss additional analyses, or assist with implementation of our recommendations. For repeat clients, we set up customised dashboards that track performance trends over time, enabling early warning of gradual degradation before it reaches critical levels.

Partner with Us for Reliability and Performance Excellence

In the demanding environment of sulfuric acid production, the integrity of heat storage balls is not a secondary concern—it directly affects conversion rates, energy consumption, and plant availability. Our testing service is built on a foundation of scientific rigor, industrial pragmatism, and a deep respect for your operational constraints. We have supported major acid plants across the Americas, Europe, and Asia in reducing unplanned outages, extending ball replacement intervals by up to 30 %, and verifying new supplier lots with confidence.

We invite you to contact our technical sales team to discuss your specific heat‑storage‑ball testing needs—whether for new‑lot acceptance, post‑service condition assessment, or root‑cause investigation of a recent failure. With our state‑of‑the‑art instrumentation, accredited quality system, and veteran materials scientists, we provide the clarity and reliability you need to keep your converters operating at peak efficiency. Request a detailed proposal or schedule a technical deep‑dive session today and experience the peace of mind that comes from truly understanding your critical refractory assets.
