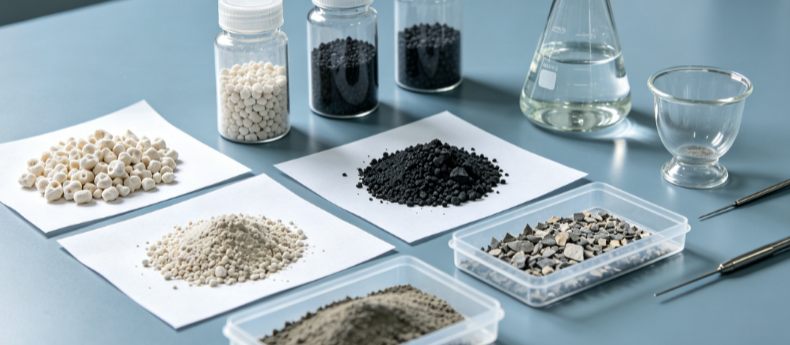

Magnetic Diatomite Composites Testing

Advanced Analytical Testing of Magnetic Diatomite Composites: Comprehensive Characterisation and Performance Validation

Magnetic diatomite composites—synthesised by incorporating superparamagnetic iron oxide nanoparticles (Fe₃O₄ or γ‑Fe₂O₃) into the intricate porous structure of diatomaceous earth—have gained prominence in water remediation, chromatography, biocatalysis, and solid‑phase extraction. The unique combination of diatomite’s highly ordered meso‑/macroporous frustules, high specific surface area, and siliceous surface with the rapid magnetic separability of iron oxides enables efficient capture and recovery of pollutants, biomolecules, or catalysts. However, the functional performance of these composites is critically dependent on homogeneous nanoparticle deposition, preservation of pore architecture, magnetic saturation, and chemical durability under operational stress. Inhomogeneous loading, pore blockage, or partial oxidation of the magnetic phase can lead to reduced adsorption capacity, slow magnetic collection, or undesirable leaching of iron species. Our laboratory provides a fully integrated, multi‑scale testing platform specifically engineered for magnetic diatomite materials, combining mineralogical, textural, magnetic, surface chemical, and application‑oriented adsorption assessments. We deliver quantitative, diagnostic, and predictive data that supports material development, process optimisation, quality assurance, and regulatory compliance for environmental, chemical, and biotechnological applications.

Why Specialised Testing of Magnetic Diatomite Is Essential for Reliable Performance

Clients seeking testing of magnetic diatomite often face challenges such as inconsistent contaminant removal in field trials, incomplete magnetic recovery leading to material loss, or unexpected release of iron into treated water. These issues frequently stem from non‑uniform distribution of magnetic nanoparticles, inadequate anchoring to the diatomite surface, or structural collapse during synthesis. Moreover, the chemical stability of the composite in acidic, alkaline, or oxidative environments must be rigorously verified to prevent dissolution of both the silica skeleton and the magnetic core. Our service provides a systematic characterisation that quantifies specific surface area (BET), pore size distribution, saturation magnetisation (Mₛ), surface hydroxyl density, and adsorption capacity for model pollutants (heavy metals, organic dyes, phosphates). By identifying the root causes of performance deviations—such as pore clogging, phase segregation, or silica‑iron interaction—we enable clients to optimise synthesis parameters (Fe loading, calcination, surface functionalisation) and validate batch‑to‑batch consistency for their specific applications.

Our Analytical Capabilities: From Microstructure to Magnetic Behaviour and Adsorption Dynamics

Our testing programme is structured into five interconnected modules, each addressing a critical aspect of the composite’s composition, structure, and functional performance:

Mineralogical and microstructural characterisation—We employ powder X‑ray diffraction (PXRD) with Rietveld analysis to identify the diatomite amorphous phase, detect crystalline iron oxide phases (Fe₃O₄, γ‑Fe₂O₃, or α‑Fe₂O₃), and assess any transformation during synthesis. High‑resolution scanning electron microscopy (HR‑SEM) and transmission electron microscopy (TEM) with EDS mapping visualise the spatial distribution of nanoparticles on the frustule surface and within the pores. Fourier‑transform infrared spectroscopy (FTIR‑ATR) and Raman microscopy identify surface silanol groups and possible Si‑O‑Fe bonding.

Textural and surface area analysis—We determine specific surface area (BET), total pore volume, and pore size distribution (DFT/BJH) using nitrogen physisorption at 77 K, covering micropores, mesopores, and macropores. Mercury intrusion porosimetry complements the characterisation of macroporous channels. Helium pycnometry measures skeletal density, while field‑emission SEM (FE‑SEM) reveals morphology and any damage to the diatomite skeleton after modification.

Magnetic property measurement—We use vibrating sample magnetometry (VSM) and SQUID magnetometry (2–400 K, up to 7 T) to obtain magnetisation hysteresis loops (M‑H), extracting saturation magnetisation (Mₛ), coercivity (H꜀), remanence, and blocking temperature. Magnetic separation kinetics are quantified under a defined magnetic field (0.5‑1 T) by monitoring turbidity or particle concentration over time, providing the time to 95 % recovery—a crucial parameter for process design.

Surface chemistry and functional group quantification—We characterise the surface hydroxyl density via potentiometric titration and Boehm titration. X‑ray photoelectron spectroscopy (XPS) with depth profiling provides the oxidation states of iron (Fe²⁺/Fe³⁺) and the chemical environment of Si and O, revealing any surface oxidation or contamination. Zeta potential measurements as a function of pH (2–12) and ionic strength determine the isoelectric point and surface charge behaviour, critical for predicting electrostatic interactions with ionic pollutants.

Adsorption performance, stability, and leachability—We perform batch equilibrium experiments using representative contaminants: heavy metals (Pb²⁺, Cd²⁺, Cu²⁺, As³⁺/As⁵⁺), organic dyes (methylene blue, rhodamine B), and phosphate, at environmentally relevant concentrations. We generate adsorption isotherms (Langmuir, Freundlich, Sips) and kinetic profiles (pseudo‑first‑order, pseudo‑second‑order, intraparticle diffusion) under controlled pH (3–10), temperature (10–50 °C), and background electrolyte. We determine maximum adsorption capacity (Qₘ), distribution coefficient (Kd), and selectivity in the presence of competing ions. Reusability is tested over multiple adsorption‑desorption cycles, while chemical stability is assessed by exposing the composite to acidic (pH 2–4), alkaline (pH 10–12), and oxidative (H₂O₂) conditions for up to 7 days, followed by re‑measurement of BET, XRD, and Mₛ. Leaching of Fe and Si into simulated environmental and biological media is quantified by ICP‑MS and ICP‑OES over time.

High‑Level Diagnostic and Predictive Modelling

We integrate adsorption data with surface complexation models (e.g., diffuse‑layer or triple‑layer) to predict pH‑dependent metal binding, and with mass transfer and reaction kinetics models to simulate breakthrough in packed‑bed columns. Using multivariate statistical analysis (PCA, PLS), we correlate synthesis parameters (Fe loading, calcination temperature, mixing time) with final performance metrics, enabling quality‑by‑design (QbD) optimisation. For failure analysis, we combine post‑use characterisation (XRD, SEM, XPS, BET) with performance history to differentiate between pore blockage, surface poisoning, magnetic phase oxidation, or silica skeleton dissolution as primary degradation pathways.

Regulatory Compliance and Quality Assurance

All test methods align with ASTM D4646 (cation exchange capacity), D5757 (adsorbent performance), ISO 9277 (BET), and relevant EPA methods. Our laboratory is ISO/IEC 17025:2017 accredited for a broad scope of materials and environmental testing. We provide certified test reports with full measurement uncertainty, traceability to NIST standards, and quality control data (reference materials, blanks, duplicates). For product registration and safety data sheets, we support OECD guideline studies on ecotoxicity and environmental fate.

Our Distinctive Advantages in Magnetic Diatomite Testing

Integrated multi‑scale correlation: We perform all key analyses on identical sample aliquots, enabling direct correlation between textural properties (BET, porosity), magnetic response (Mₛ, coercivity), and adsorption performance (Qₘ, kinetics). This holistic approach ensures that structure‑property‑performance relationships are accurately established, free from inter‑batch variability.

Realistic environmental simulation: Our adsorption tests use synthetic groundwaters, industrial effluents, and natural organic matter‑containing matrices with controlled competing ions and turbidity, ensuring that our capacity and selectivity data directly reflect field conditions, not idealised lab water.

Advanced iron speciation and leachate profiling: With Mössbauer spectroscopy (available upon request) and high‑resolution XPS, we precisely determine iron oxidation states and magnetic phase composition, and correlate these with leaching risks. Our HRMS‑ICP‑MS capability enables detection of trace organic and inorganic leachables, including siloxanes and heavy metals, at sub‑ppb levels.

Expert guidance for material optimisation: Our team comprises clay mineralogists, magnetic materials specialists, and environmental engineers who provide specific, actionable recommendations—for instance, optimising the Fe/diatomite ratio to balance magnetic separability with pore accessibility, or suggesting surface silanisation to enhance acid resistance.

Fast turnaround and flexible sample requirements: Our standard full characterisation package is delivered within 10–14 working days, with expedited 72‑hour service for critical parameters (BET, Mₛ, and initial adsorption capacity). We handle powders, pellets, and slurries with sample masses as low as 2 g.

End‑to‑End Service Workflow

We initiate each project with a complimentary technical consultation to define your composite composition, target contaminants, application conditions, and performance criteria. We design a customised test plan, advising on sample handling and shipping (including inert atmosphere for oxidation‑sensitive materials). Upon sample receipt, we perform receipt inspection and preconditioning (drying, degassing). All tests are executed with strict QA/QC—reference standards, blanks, and replicate measurements. Data are integrated and reviewed by our lead scientist, then compiled into a comprehensive report containing XRD patterns, SEM/TEM images, BET tables, magnetic hysteresis loops, adsorption isotherms, leachate profiles, and a clear executive summary with optimisation recommendations. A post‑report meeting is offered to discuss findings and plan further development or scale‑up steps.

Partner with Us for Reliable, High‑Performance Magnetic Diatomite Solutions

Magnetic diatomite composites offer a sustainable and cost‑effective platform for adsorption and separation, but their success hinges on thorough, multi‑dimensional characterisation. Our testing service provides the scientific rigor, practical relevance, and regulatory support necessary to ensure your material performs reliably in real‑world applications. We have assisted environmental technology firms, water treatment plants, and research institutions in developing and qualifying magnetic diatomite products for market deployment.

We invite you to contact our technical experts to discuss your specific magnetic diatomite testing requirements—whether for product development, batch release, or troubleshooting. With our advanced analytical instruments, accredited protocols, and deep domain expertise, we provide the insights you need to perfect your magnetic diatomite technology and achieve your performance goals with confidence. Request a detailed proposal or schedule a technical consultation today and take the next step towards superior, data‑driven magnetic diatomite solutions.
