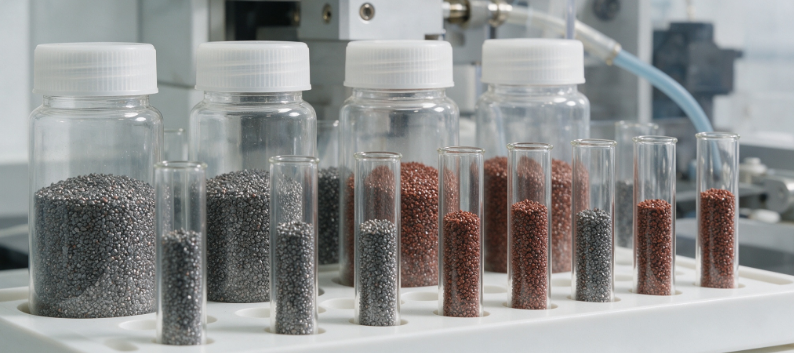

Multi‑Element Iron‑Coated Sand Testing

Comprehensive Analytical Testing of Multi‑Element Iron‑Coated Sand: Advanced Characterisation for Performance and Quality Assurance

Multi‑element iron‑coated sand (MEICS)—produced by uniformly depositing iron oxides (e.g., magnetite, hematite, goethite) and ancillary metal/metal oxide layers (such as Mn, Al, Ti, or Ce) onto quartz or silica sand grains—is an engineered filtration and catalytic medium widely used in drinking water treatment (removal of arsenic, phosphate, heavy metals), oxidative catalysis, and biofilm support. The synergistic effects of multiple metal oxide coatings enhance surface reactivity, adsorption capacity, and catalytic oxidation performance compared to single‑iron coatings. However, the efficacy of MEICS depends critically on coating uniformity, elemental distribution, oxide phase composition, adhesion strength, porosity, and long‑term chemical stability under aggressive hydraulic and chemical conditions. Even minor variations in coating conditions (e.g., pH, temperature, precursor concentration) can lead to inconsistent pollutant removal, coating delamination, or undesirable leaching of metal species, compromising water quality and operational reliability. Our laboratory provides a fully integrated, multi‑technique testing platform specifically designed for the rigorous characterisation of multi‑element iron‑coated sand, combining surface and bulk elemental analysis, mineralogical and phase identification, microstructural imaging, mechanical integrity assessment, and application‑oriented adsorption/leaching performance testing. We deliver quantitative, diagnostic, and predictive data that supports material development, quality control, process optimisation, and regulatory compliance for water treatment, environmental engineering, and advanced catalytic sectors.

Why Dedicated Testing of Multi‑Element Iron‑Coated Sand Is Essential for Reliable Water Treatment and Catalytic Performance

Water utilities, filtration media manufacturers, and environmental consultants seeking MEICS testing frequently encounter challenges such as unexpected arsenic breakthrough after short service times, excessive iron or manganese leaching into treated water, or poor physical durability leading to fines generation. These issues often originate from non‑stoichiometric oxide deposition, incomplete hydrolysis, weak bonding between the coating and the substrate, or the presence of soluble intermediate phases. Moreover, the competitive adsorption between target contaminants (e.g., arsenate, phosphate, chromate) and common coexisting anions (sulfate, bicarbonate, silicate) demands a thorough understanding of surface chemistry. Our service provides a systematic characterisation that quantifies coating thickness and morphology (SEM‑EDS, TEM), elemental composition and lateral distribution (XRF, ICP‑MS, EDS mapping), mineral phases (XRD, Raman), surface area and porosity (BET), adsorption capacity and kinetics (batch and column tests) for target pollutants, as well as metal leaching (TCLP, dynamic leaching). By identifying the root causes of sub‑standard performance—such as incomplete coverage, excessive porosity, or phase transformation—we enable clients to optimise coating formulation, adjust deposition parameters, and establish robust quality control metrics for consistent, high‑performance MEICS products.

Our Analytical Capabilities: From Coating Chemistry to Dynamic Filtration and Stability Assessment

Our testing framework is structured into five interconnected modules, each addressing a critical dimension of MEICS quality and functionality:

Surface and bulk elemental analysis—We determine total iron, aluminium, manganese, titanium, and other metal contents by inductively coupled plasma optical emission spectrometry (ICP‑OES) and ICP‑mass spectrometry (ICP‑MS) after acid digestion, achieving detection limits in the sub‑ppm range. X‑ray fluorescence (XRF) provides rapid, non‑destructive multi‑element screening. Scanning electron microscopy (SEM) with energy‑dispersive X‑ray spectroscopy (EDS) maps the lateral and cross‑sectional elemental distribution, revealing coating uniformity and the presence of segregated phases. X‑ray photoelectron spectroscopy (XPS) with depth profiling (Ar⁺ sputtering) provides surface oxide speciation (Fe²⁺/Fe³⁺, Mn³⁺/Mn⁴⁺, Ti⁴⁺) and the chemical state of adsorbed species.

Mineralogical and phase characterisation—We employ powder X‑ray diffraction (PXRD) with Rietveld refinement to identify crystalline phases (magnetite, hematite, goethite, lepidocrocite, birnessite, anatase, etc.) and quantify amorphous content. Raman spectroscopy (multiple excitation wavelengths) probes the local structural order and detects poorly crystalline or nanocrystalline phases. Mössbauer spectroscopy (⁵⁷Fe) is available upon request for detailed iron oxidation state and site occupancy analysis, particularly relevant for distinguishing magnetite from maghemite in the coating.

Textural, morphological, and mechanical characterisation—We measure specific surface area (BET) and pore size distribution (DFT/BJH) via N₂ physisorption at 77 K. Mercury intrusion porosimetry evaluates macropore volume and particle packing. Field‑emission SEM (FE‑SEM) and transmission electron microscopy (TEM) visualise coating morphology, thickness (typically 10‑500 nm), and adhesion to the silica core. Atomic force microscopy (AFM) provides surface roughness and coating continuity. Attrition resistance is quantified by rotating drum (ASTM D4058), measuring fines generation and particle degradation. Coating adhesion is assessed by ultrasonic probe treatment followed by SEM and ICP‑MS analysis of the detached material.

Adsorption performance and dynamic column testing—We conduct batch equilibrium experiments with representative pollutants: arsenate (As⁵⁺), arsenite (As³⁺), phosphate, chromate, and heavy metals (Pb²⁺, Cu²⁺, Zn²⁺) at environmentally relevant pH (5‑9) and temperature (10‑30 °C). We generate isotherms (Langmuir, Freundlich, Sips) and kinetic profiles (pseudo‑first‑order, pseudo‑second‑order, intraparticle diffusion) to determine maximum adsorption capacity (Q₀), affinity constants, and rate constants. Competitive ion studies quantify the effect of sulfate, bicarbonate, silicate, and natural organic matter on target removal. Fixed‑bed column tests (with continuous flow and real‑time effluent monitoring) yield breakthrough curves, exhaustion capacity, and mass transfer zone (MTZ) lengths, directly relevant to full‑scale filter design.

Chemical stability, leaching, and ageing assessment—We perform static and dynamic leaching tests in deionised water, simulated groundwater, and acidic/alkaline media (pH 3‑10) to quantify the release of Fe, Mn, Al, Ti, and other trace metals by ICP‑MS over 7‑14 days, following EPA Method 1311 (TCLP) and EN 12457. Accelerated ageing under humid, thermal, and freeze‑thaw cycling conditions is followed by re‑characterisation (BET, XRD, XPS) to evaluate coating stability, phase transformation, and mechanical degradation.

High‑Level Diagnostic and Predictive Modelling

We integrate surface chemistry, mineralogy, and adsorption data to build surface complexation models (e.g., diffuse‑layer model) that predict pH‑dependent pollutant uptake and competitive adsorption under changing water chemistry. Using multivariate statistical analysis (PCA, PLS), we correlate coating parameters (elemental ratios, calcination temperature, deposition pH) with key performance metrics (Q₀, attrition resistance, leaching), enabling quality‑by‑design (QbD) optimisation. For failure diagnosis, we combine post‑use characterisation (SEM, XPS, XRD, BET) with performance histories to differentiate between coating delamination, surface poisoning, phase transformation, and pore clogging as degradation mechanisms.

Regulatory Compliance and Quality Assurance

All test methods are aligned with ASTM, ISO, and US EPA standards for coated filtration media and water treatment materials, including ASTM D7696 (coated media), D5757 (adsorbent performance), and ISO 10927. Our laboratory holds ISO/IEC 17025:2017 accreditation for a wide scope of chemical, mechanical, and environmental testing. We issue certified test reports with full measurement uncertainty, traceability to NIST/CRM reference materials, and quality control data (reference materials, blanks, duplicates). For product certification (e.g., NSF/ANSI 61 for drinking water contact), we provide comprehensive data packages meeting all regulatory requirements.

Our Distinctive Advantages in Multi‑Element Iron‑Coated Sand Testing

Comprehensive multi‑layer and multi‑phase characterisation: We combine XPS depth profiling, TEM cross‑section imaging, and XRD/Raman to provide a complete picture of the coating’s elemental distribution, oxidation states, and crystallinity from the outermost surface to the sand core—a depth rarely achieved by standard testing laboratories.

Realistic hydraulic and chemical simulation: Our column breakthrough tests, competitive ion studies, and dynamic leaching protocols replicate actual water treatment conditions (flow, pH, temperature, coexisting solutes), ensuring that our adsorption and stability data are directly translatable to field performance.

Advanced coating integrity diagnostics: We offer ultrasonic adhesion tests, thermal cycling, and mechanical attrition combined with quantitative imaging (SEM) and chemical analysis (ICP‑MS), providing a robust assessment of coating durability under operational stress.

Expert guidance for formulation optimisation: Our team includes surface chemists and environmental engineers with extensive industrial experience in coated media manufacturing. We provide specific, actionable recommendations—for example, adjusting the Fe:Mn ratio to balance arsenate and phosphate removal, optimising the calcination step to enhance magnetite formation, or suggesting a pre‑coating layer to improve adhesion of the multi‑element film.

Fast turnaround and flexible sample formats: Our standard full characterisation package (elemental, mineralogical, textural, adsorption, and leaching) is delivered within 10‑14 working days, with expedited 48‑hour screening for key parameters (elemental content, BET, and arsenate capacity). We handle sand samples of particle sizes from 0.2 mm to 2 mm, and sample masses from 50 g to 10 kg.

End‑to‑End Service Workflow

We initiate each project with a complimentary technical consultation to define your coating formulation, target contaminants, operating conditions, and regulatory framework. We design a customised test plan, advising on sampling, packaging, and shipping (e.g., air‑tight containers to prevent oxidation). Upon sample receipt, we perform receipt inspection and preconditioning (drying, sieving). All tests are executed with strict QA/QC—reference materials, blanks, and replicates. Data are integrated and reviewed by our lead environmental scientist, then compiled into a comprehensive report containing elemental composition, XRD patterns, adsorption isotherms, breakthrough curves, leaching profiles, and a clear executive summary with optimisation recommendations. A post‑report meeting is offered to discuss findings and plan further development or deployment.

Partner with Us for Reliable, High‑Performance Multi‑Element Iron‑Coated Sand Solutions

Multi‑element iron‑coated sand offers a versatile and cost‑effective platform for advanced water treatment and catalysis, but its success hinges on thorough, multi‑dimensional characterisation. Our testing service provides the scientific depth, practical realism, and regulatory support necessary to ensure your material performs effectively, safely, and consistently in demanding applications. We have supported municipal water utilities, media manufacturers, and environmental consultancies in developing and qualifying high‑performance coated‑sand products.

We invite you to contact our technical experts to discuss your specific MEICS testing needs—whether for product development, quality assurance, or troubleshooting. With our advanced analytical arsenal, accredited protocols, and specialised expertise, we provide the insights you need to perfect your multi‑element coated‑sand technology. Request a detailed proposal or schedule a technical consultation today and take the next step towards superior, data‑driven filtration and catalytic solutions.
