BiOBr Visible-Light Photocatalytic Thin Films Testing

BiOBr Visible-Light Photocatalytic Thin Films: Comprehensive Characterization and Performance Testing Services

Bismuth oxybromide (BiOBr) has emerged as a highly promising visible-light-driven photocatalyst, distinguished by its layered tetragonal structure, suitable bandgap (approximately 2.7–2.9 eV), and exceptional photochemical stability. Clients seeking analytical services for BiOBr thin films are typically engaged in the development of advanced oxidation processes, environmental remediation, self-cleaning surfaces, antibacterial coatings, or photoelectrochemical energy conversion devices. The primary objective of such testing is to rigorously evaluate the material's structural integrity, optical properties, charge carrier dynamics, and, most critically, its photocatalytic efficiency under simulated solar or visible-light irradiation. These parameters are indispensable for quality control during fabrication, performance benchmarking, and for establishing structure–activity relationships that guide further optimization. This article provides a detailed technical exposition of the state-of-the-art characterization methodologies applicable to BiOBr thin films, highlighting our laboratory's advanced capabilities in delivering quantitative, reproducible, and interpretable data that meets the rigorous demands of both academic research and industrial quality assurance.

Fundamental Properties of BiOBr and the Rationale for Multi-Method Characterization

BiOBr crystallizes in a tetragonal matlockite structure, composed of [Bi₂O₂]²⁺ slabs interleaved with double bromide anion layers. This anisotropic arrangement gives rise to an internal electric field that promotes the separation of photogenerated electron–hole pairs, a key factor in its superior photocatalytic activity compared to TiO₂ under visible light. However, the performance of BiOBr thin films is highly sensitive to synthesis parameters, including precursor stoichiometry, solvent composition, hydrothermal temperature, deposition method (e.g., spin-coating, dip-coating, or electrodeposition), and post-annealing conditions. Variation in these factors can lead to differences in crystallinity, phase purity, preferential orientation, surface morphology, film thickness, and defect density, all of which profoundly influence the optical absorption edge, charge recombination rates, and surface reactivity. Therefore, a comprehensive testing program must integrate complementary analytical techniques to provide a holistic evaluation of the film quality and its photocatalytic potential. Our service is structured around a multi-tiered analytical cascade that begins with structural and morphological assessment, progresses to optical and electronic characterization, and culminates in photocatalytic performance tests under well-defined illumination conditions, ensuring that no critical attribute is overlooked.

Standards and Reference Protocols for Photocatalytic Testing

While there is no single overarching standard specifically for BiOBr thin films, our testing protocols are aligned with internationally recognized guidelines for photocatalytic materials, including ISO 10678:2010 (Determination of photocatalytic activity of surfaces in an aqueous medium by degradation of methylene blue) and ISO 22197-1:2016 (Test method for air-purification performance of semiconducting photocatalytic materials – Part 1: Removal of nitric oxide). For thin films, we additionally follow the recommendations of the International Union of Pure and Applied Chemistry (IUPAC) on reporting photocatalytic kinetics, as well as best practices from peer-reviewed literature for BiOBr-specific testing. Our measurements are performed under controlled ambient conditions (temperature 25 ± 1 °C, relative humidity 50 ± 5%) and with calibrated light sources traceable to NIST standards. For each batch of films, we include reference samples (e.g., standard TiO₂ P25-coated slides) to verify day-to-day consistency and to enable cross-lab comparison. Our reports explicitly state the measurement conditions, the model used for kinetic fitting (Langmuir–Hinshelwood or pseudo-first-order), and the calculated rate constants with expanded uncertainty (k=2), ensuring that the data are defensible in both research publications and regulatory submissions.

Advanced Characterization Methodologies: Structural and Morphological Assessment

The foundational step in our testing suite is the determination of crystal structure, phase composition, and texture. We employ high-resolution X-ray diffraction (HR-XRD) with Cu Kα radiation and a parallel-beam geometry, equipped with a position-sensitive detector and a monochromator, allowing us to identify the characteristic (001), (102), and (110) reflections of BiOBr with a 2θ resolution of 0.01°. We perform Rietveld refinement to extract lattice parameters, crystallite size, and microstrain, and we conduct pole figure analysis to assess the degree of preferential orientation, which is critical for maximizing exposure of the reactive (001) facets. To complement structural data, we utilize field-emission scanning electron microscopy (FE-SEM) with an in-lens detector and a low accelerating voltage (2–5 kV) to avoid beam damage, capturing high-fidelity images of surface topography, grain morphology, and film coverage. We additionally perform cross-sectional imaging to measure film thickness with an accuracy of ±2 nm, and we employ energy-dispersive X-ray spectroscopy (EDS) mapping at the nanoscale to verify the Bi:Br:O stoichiometry and detect any elemental contamination. For a more detailed surface analysis, we use atomic force microscopy (AFM) in tapping mode to quantify root-mean-square (RMS) roughness and surface area, parameters that directly correlate with the number of active sites. Our integrated morphological assessment provides a spatially resolved statistical distribution of grain size, roughness, and porosity across the entire film (5 cm × 5 cm area), enabling the detection of inhomogeneities that could compromise large-scale photocatalysis.

Optical and Electronic Property Evaluation

The visible-light response of BiOBr is primarily governed by its bandgap and the position of the conduction and valence band edges. We determine the optical bandgap (E_g) using UV-Vis-NIR diffuse reflectance spectroscopy integrated with an integrating sphere, employing the Kubelka–Munk transformation and Tauc plot analysis for both direct and indirect allowed transitions. Our spectrophotometer covers the range 200–2500 nm with a resolution of 0.1 nm, and we perform temperature-dependent optical measurements (from 10 K to 300 K) to probe excitonic binding energies and bandgap temperature coefficients. To evaluate the charge carrier dynamics, we carry out time-resolved photoluminescence (TRPL) using a pulsed laser diode (375 nm) and a streak camera with sub-nanosecond resolution, yielding the average carrier lifetime and the relative contributions of radiative and non-radiative recombination. Complementarily, we conduct surface photovoltage (SPV) spectroscopy, which is particularly sensitive to charge separation in the space-charge region, and electrochemical impedance spectroscopy (EIS) on the film/electrolyte interface under illumination to extract the flat-band potential, the carrier density, and the charge transfer resistance. These combined techniques allow us to construct a complete energy band diagram of the BiOBr film, including the band bending at the surface, which is crucial for predicting its photocatalytic oxidation/reduction power. For films with potential doping or heterojunction formation, we further perform X-ray photoelectron spectroscopy (XPS) with in-situ ultraviolet photoelectron spectroscopy (UPS) to precisely determine the work function and the valence band maximum, providing an unambiguous electronic structure benchmark.

Photocatalytic Performance Testing: Rigorous Kinetic and Mechanistic Studies

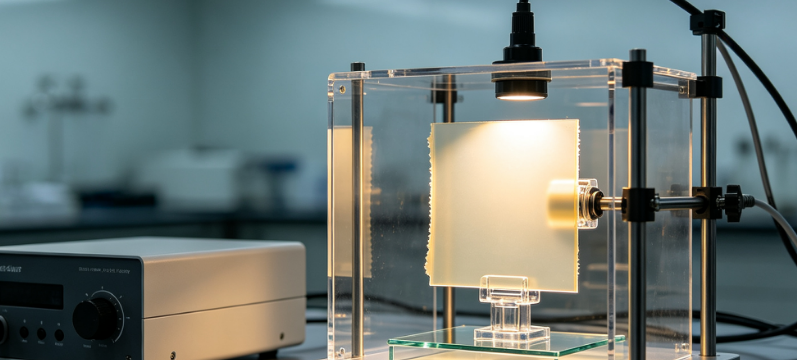

The ultimate measure of BiOBr thin film quality is its photocatalytic activity under simulated solar or visible illumination. Our standard assay employs methylene blue (MB) degradation in aqueous solution, conducted in a custom-built photoreactor equipped with a 300 W Xe lamp coupled with an AM 1.5G filter and a UV-cutoff filter (λ ≥ 420 nm) to ensure visible-only excitation. The light intensity is calibrated using a thermopile and a spectroradiometer, and we maintain a constant temperature using a water-jacketed cell. We monitor the degradation progress via in-situ UV-Vis absorption spectroscopy at intervals of 2 minutes for a total duration of 120 minutes, and we compute the apparent first-order rate constant (k) using linear regression of ln(C₀/C) vs. time. To differentiate between photolysis and photocatalytic effects, we include a control test in darkness and a control with the film but without light. For a more comprehensive evaluation, we also perform rhodamine B (RhB) decolorization, 4-chlorophenol mineralization, and NO gas-phase removal—the latter following ISO 22197-1—to assess the film's ability to tackle diverse pollutants. Beyond simple degradation rates, we conduct scavenger experiments using tert-butyl alcohol (•OH scavenger), ethylenediaminetetraacetic acid (h⁺ scavenger), and benzoquinone (•O₂⁻ scavenger) to identify the dominant reactive species, providing mechanistic insights into the photogenerated charge utilization. Our data analysis incorporates the quantum efficiency (QE) based on the number of incident photons and the degraded molecule count, and we calculate the figure of merit (FoM) for each film, enabling direct comparison with literature benchmarks. For long-term applications, we perform cycling tests over 10 consecutive runs, with intermediate rinsing and drying, to evaluate photostability and adherence—both critical for industrial uptake.

Our Technical Capabilities: Instrumentation and Metrological Precision

Our laboratory is equipped with a fully integrated thin-film characterization platform that combines structural, optical, electrical, and photocatalytic measurement modules in a controlled environment (class 1000 cleanroom for sensitive films). The core instrument is a multi-functional X-ray diffractometer with a Cu rotating anode (18 kW) and a hybrid monochromator, achieving a peak sensitivity of 10⁴ counts per second for BiOBr (102) reflection, with a detection limit for secondary phases below 0.5 wt%. Our SEM/FIB system is equipped with a high-brightness Schottky field-emission gun and a silicon-drift detector for EDS, allowing elemental mapping with a spatial resolution of 1 nm and a minimum detection limit of 0.1 at%. The AFM is capable of scanning up to 100 µm × 100 µm with a vertical resolution of 0.05 nm. The UV-Vis-NIR spectrometer employs a dual-beam configuration with a PMT and InGaAs detector, giving a photometric accuracy of ±0.002 absorbance units. Our time-resolved photoluminescence setup achieves a temporal resolution of 20 ps using a super-continuum fiber laser and a photon-counting streak camera, and we perform global fitting of the decay curves using a multi-exponential model with the Levenberg–Marquardt algorithm. For electrochemical measurements, we use a potentiostat/galvanostat with a built-in frequency response analyzer, covering the range 10 µHz to 1 MHz, with a current resolution of 1 pA.

All instruments undergo annual calibration traceable to NIST and PTB, and we run daily system checks with standard reference materials (e.g., sapphire, silicon, and NIST 2036 for photometry). Our data acquisition software automatically records all environmental parameters (temperature, humidity, and light intensity) and flags any out-of-tolerance conditions. We maintain strict sample handling protocols to avoid contamination, and we provide statistical analysis of at least three replicate films from each deposition batch, reporting the mean and standard deviation for each measured parameter. This metrological rigor ensures that our results are reproducible within ±2% for structural parameters, ±3% for optical bandgap, and ±5% for photocatalytic rate constants—a level of precision that is essential for differentiating subtle compositional variations or processing optimizations.

Distinguishing Advantages of Our BiOBr Thin Film Testing Service

Our service is distinguished by four key advantages that address the most demanding needs of researchers and industrial developers. First, we provide a fully integrated “one-stop” testing package that covers structural, optical, electronic, and photocatalytic assessment within a single submission, eliminating the need for clients to coordinate multiple facilities and reducing overall turnaround time to 10–15 working days. Second, our proprietary multi-variable correlation analysis uses machine-learning algorithms to cross-reference the measured parameters (e.g., crystallite size, bandgap, carrier lifetime, and rate constant) and identify the dominant factors controlling activity. This analysis delivers not only a performance rating but also actionable directions for synthesis optimization—such as the optimal annealing temperature or the preferred precursor ratio—saving clients significant trial-and-error efforts. Third, we possess extensive expertise in handling delicate or heterostructured films, including BiOBr/BiOI, BiOBr/g-C₃N₄, and BiOBr/metal-organic frameworks (MOFs), and we can tailor the testing protocols to account for additional complexity, such as charge transfer across interfaces or cascade band alignment. Fourth, we offer a comprehensive digital reporting portal that provides clients with secure access to raw data, processed results, and interpretive notes, along with the option of an interactive discussion session with our senior material scientists. We also provide accelerated aging tests under continuous illumination for up to 100 hours to evaluate long-term photostability—a crucial metric for commercial applications—and we can integrate in-situ Raman spectroscopy during photocatalysis to monitor structural changes in real-time.

Typical Applications and Customization Options

Our testing services cater to a wide spectrum of application scenarios. In environmental remediation, we assess films designed for wastewater treatment, measuring degradation rates for organic dyes, pharmaceuticals, and endocrine-disrupting compounds. In self-cleaning coatings, we evaluate both photo-induced hydrophilic conversion and the degradation of oily contaminants under low-intensity indoor lighting. In photoelectrochemical water splitting, we measure incident photon-to-current efficiency (IPCE) and hydrogen evolution rates, with special attention to the stability under anodic bias. For antibacterial surfaces, we perform bacterial colony count reductions under illumination using E. coli and S. aureus as model strains. We can also customize the light source spectrum (e.g., monochromatic LEDs at specific wavelengths) to simulate specific environments, and we offer temperature-controlled reactions from 5 °C to 80 °C for exploring activation energies. Our team works closely with clients to design a test plan that addresses their specific research questions or quality control checkpoints, ensuring that the results are directly applicable to their development stage.

Case Example: Identifying the Optimal Annealing Protocol for High-Activity BiOBr Films

A recent collaboration with a university research group illustrates the power of our integrated approach. The client had prepared BiOBr films via a solvothermal method followed by post-annealing at temperatures from 300 °C to 500 °C. Their initial screening using UV-Vis only showed minimal differences. Our full characterization revealed that the 400 °C annealed film exhibited the highest crystallinity and the lowest defect density (as indicated by the lowest Urbach energy, 85 meV, compared to 120 meV for 300 °C and 105 meV for 500 °C). However, the 500 °C film showed a slight increase in the intensity of a deep-level emission band in TRPL, correlating with the formation of oxygen vacancies. Most importantly, the photocatalytic degradation of MB under visible light showed that the 400 °C film achieved a rate constant of 0.035 min⁻¹, nearly double that of the 500 °C film (0.018 min⁻¹) and triple that of the 300 °C film (0.012 min⁻¹). Our correlation analysis linked the activity primarily to the carrier lifetime (τ_avg = 2.8 ns for 400 °C vs. 1.9 ns for 500 °C) rather than to the bandgap, guiding the client to focus on defect engineering rather than further bandgap tuning. The client's subsequent publication, which cited our comprehensive characterization, received recognition for its rigorous data foundation. This case demonstrates that our testing not only provides pass/fail assessments but delivers diagnostic intelligence that directly accelerates the rational development of advanced photocatalysts.

Our Engagement Process and Client Support

To initiate a project, clients are invited to submit a sample submission form that details film dimensions, substrate type, synthesis history, and specific testing priorities. We then provide a customized quotation and test plan with a clear timeline. Upon receiving the samples, we perform an initial visual and low-magnification inspection to confirm suitability, and we then proceed with the non-destructive measurements (XRD, SEM, AFM, UV-Vis) before any destructive tests (e.g., scratch adhesion tests or long-term photocatalytic cycling). Throughout the process, we maintain weekly progress updates and are always available for technical queries. The final comprehensive report includes all raw data in ASCII format, processed graphs, tabulated summaries, a comparative benchmark against literature values, and a summary of strengths, weaknesses, and recommended improvements. We also offer a confidentiality agreement to protect proprietary information. For clients requiring expedited service, we have a priority track that reduces the turnaround to 5 working days at an additional charge. Our pricing is transparent, with volume discounts for series of samples.

We are committed to advancing the field of photocatalytic materials through meticulous, reproducible, and insightful characterization. By choosing our service, you gain access to a team of senior scientists with combined experience exceeding 50 years in semiconductor physics, surface chemistry, and photocatalysis, who will treat your samples with the highest standards of scientific integrity. We invite you to contact our technical sales team to discuss your specific BiOBr thin film testing requirements, and we will be pleased to provide a free preliminary consultation to define the most relevant test parameters for your objectives. Trust our expertise to deliver the data you need—with the depth, precision, and clarity that enable confident decision-making in research and development.
