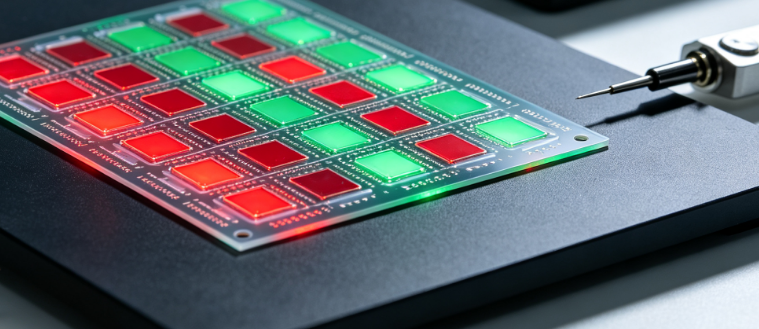

Dual-Color LED Chip Testing

Comprehensive Dual-Color LED Chip Testing Services – Advanced Characterization for Color Consistency and Reliability

Dual-color LED chips – also known as bi-color or multi-wavelength LEDs – are increasingly deployed in a wide range of applications, including tunable white lighting, automotive interior and exterior illumination, RGB displays (where red and green or blue and green are combined), status indicators, and horticultural lighting. These chips typically integrate two distinct emission wavelengths within a single package or monolithic structure, either through two separate active regions, phosphor conversion layers, or hybrid architectures. The performance of dual-color LED chips is governed by the precise control of each emission peak, their relative intensities, and the stability of color mixing under varying drive currents and temperatures. Clients seeking dual-color LED chip testing services typically aim to: (i) verify the peak wavelength and spectral width of each emission band, (ii) measure color coordinates, correlated color temperature (CCT), and color rendering index (CRI) for white-emitting dual-color chips, (iii) evaluate color gamut and color mixing accuracy for display applications, (iv) assess the stability of color point under thermal and electrical stress, and (v) generate comprehensive qualification data for product datasheets, customer audits, and regulatory compliance. Our laboratory offers a fully integrated, ISO/IEC 17025‑accredited dual-color LED chip testing service that combines simultaneous multi-wavelength spectral analysis, high-resolution color mapping, temperature-dependent electro-optical characterization, reliability testing, and advanced failure analysis into a unified assessment platform. We do not merely report pass/fail results; we deliver a holistic dual-color performance fingerprint that correlates epitaxial structure, chip design, phosphor chemistry, and packaging with real-world color behavior, empowering our clients to accelerate development, improve yield, and achieve competitive differentiation in the rapidly evolving LED market.

Why Professional Dual-Color LED Chip Testing Is Indispensable for Color-Critical Applications

Dual-color LED chips are significantly more complex than single-color emitters. The presence of two emission bands introduces new challenges: spectral overlap can complicate color point determination; differential aging of the two emitters can cause color shift over time; and thermal crosstalk between the two active regions can alter the relative intensity and wavelength. For applications such as tunable white lighting, a slight deviation in the blue-to-yellow ratio can shift the CCT by hundreds of Kelvin. For automotive displays, a change in the red-to-green ratio can distort the color gamut and impair driver visibility. For horticultural lighting, the red-to-blue ratio directly affects plant growth and yield. Regulatory and industry standards such as IES LM‑79, LM‑80, CIE S 025, JEDEC JESD22, AEC‑Q102, and ISO 14707 impose stringent requirements on testing methods and data reporting. Our testing services provide the objective evidence needed to demonstrate conformity, support design allowables, and win certification. We help clients navigate the complex landscape of standards, ensuring that every dual-color chip meets the requirements of its intended application and regulatory jurisdiction.

Simultaneous Multi-Wavelength Spectral Analysis – Resolving Individual Emission Peaks

The first step in dual-color chip characterization is the accurate separation and measurement of each emission band. Our primary platform is a high-resolution spectroradiometer (Instrument Systems CAS 140D) coupled with a 1.5‑meter integrating sphere for absolute flux measurements, or a microscope-based optical probe for chip-level analysis. The system covers a spectral range from 200 nm to 1700 nm with a resolution of 0.1 nm, enabling precise determination of peak wavelength (λ_p), dominant wavelength (λ_d), full width at half maximum (FWHM), and spectral power distribution (SPD) for each emission band. We employ spectral deconvolution algorithms (Gaussian, Lorentzian, or Voigt fitting) to separate overlapping peaks and to quantify the contribution of each emitter to the total radiant flux. For dual-color chips with phosphor conversion, we also measure the blue pump leakage and the phosphor conversion efficiency. The system simultaneously records electrical parameters (forward voltage, current), allowing direct calculation of radiant flux (W), luminous flux (lm), external quantum efficiency (EQE), and wall‑plug efficiency (WPE) for each channel. We perform measurements at multiple current levels (from 1 mA to 5 A) and controlled junction temperatures (25 °C, 55 °C, 85 °C, and 105 °C) using a thermoelectric chuck with ±0.1 °C stability.

Color Mixing, Color Point, and Gamut Analysis – Ensuring Precise Color Reproduction

For dual-color chips intended for white lighting or displays, the accurate mixing of the two emission bands is critical. Our laboratory performs comprehensive color analysis using CIE 1931 and CIE 1976 color spaces, calculating color coordinates (x, y, u′, v′), correlated color temperature (CCT), distance from Planckian locus (Duv), and color rendering index (CRI – Ra and R1–R15). For display applications, we measure color gamut coverage (sRGB, Adobe RGB, DCI‑P3) and color volume under various drive conditions. We also assess color uniformity across the chip surface using high-resolution EL mapping with a spatial resolution of 1 μm, generating 2D maps of color coordinates, CCT, and intensity. For tunable white chips, we evaluate the color tuning range and the accuracy of color mixing at different current ratios between the two emitters. Our proprietary color mixing model uses the measured spectral data to predict the resulting color point for any combination of drive currents, enabling clients to optimize their control algorithms and binning strategies. We also perform angular color uniformity measurements using a goniometric stage, ensuring that the color point remains stable across viewing angles – a critical requirement for display and automotive applications.

Electrical and Thermal Characterization – Junction Temperature and Efficiency Droop

The electrical and thermal behavior of dual-color chips directly affects their color stability and efficiency. We perform DC and pulsed current‑voltage (I‑V) measurements on each emitter independently and simultaneously, extracting forward voltage (V_F), ideality factor, series resistance, and reverse Leakage Current. To separate self‑heating effects from intrinsic device response, we use pulsed I‑V measurements with pulse widths from 200 ns to 10 µs and duty cycles as low as 0.01%. We measure the junction temperature (T_j) of each emitter using the forward‑voltage temperature coefficient (K‑factor) method, calibrated from 20 °C to 120 °C. For dual-color chips, we also evaluate thermal crosstalk between the two emitters – the increase in T_j of one emitter due to heating from the other – by driving one emitter and measuring the temperature rise of the other. This is essential for predicting color shift under high‑power operation. We perform thermal resistance (R_th) measurement using the transient thermal impedance method (T3Ster® system), deriving the structure function and the cumulative thermal resistance network. We also use infrared (IR) thermography with a spatial resolution of 5 μm to map the temperature distribution across the chip, identifying hot spots that may lead to differential aging. For efficiency droop analysis, we compare pulsed and DC L‑I curves at identical T_j, extracting the Auger coefficient and the Shockley‑Read‑Hall coefficient for each emitter.

Reliability and Lifetime Testing – Accelerated Stress and Color Stability

Reliability qualification is a critical step for dual-color LED chips in automotive, display, and industrial applications. We operate a dedicated multi-site reliability test system capable of applying constant current, constant voltage, or pulsed stress to up to 96 devices simultaneously, with independent temperature control (up to 200 °C) and humidity (10–95% RH). We perform the following accelerated stress tests:

(i) High-temperature operating life (HTOL) – to evaluate the stability of the active regions, contacts, and phosphor layers.

(ii) High-temperature reverse bias (HTRB) – to assess the integrity of the passivation and the bonding interface.

(iii) Wet high-temperature operating life (WHTOL) at 85 °C/85% RH – to evaluate moisture resistance and electrochemical migration.

(iv) Thermal cycling and thermal shock – to assess the mechanical robustness of the dual-color stack and bonding.

(v) ESD (HBM and CDM) per ANSI/ESDA/JEDEC standards to assess robustness.

During stress, we periodically measure the spectral power distribution, color coordinates, CCT, CRI, and radiant flux of each emitter to monitor color shift (Δu′v′) and differential aging. We analyze the degradation kinetics using Arrhenius, Eyring, and power‑law models, extracting the activation energy (E_a) and the lifetime (L₁₀, L₅₀) at use conditions for each emitter. Our proprietary physics‑of‑failure (PoF) framework combines experimental data with TCAD simulations to identify the dominant failure mechanisms (e.g., contact degradation, defect propagation, or phosphor degradation) and to provide guidelines for derating or design improvement. We also perform color maintenance testing to ensure that the color point remains within specification over the entire lifetime.

Advanced Failure Analysis and Root-Cause Diagnostics

When dual-color LED chips fail to meet specifications or exhibit unexpected degradation, our failure analysis (FA) service provides a systematic, multi-technique investigation. Our FA flow includes:

(i) Optical and confocal microscopy for visual inspection of surface damage, discoloration, and macro-defects.

(ii) Scanning electron microscopy (SEM) with EDS for high-magnification imaging and elemental analysis of defects, contamination, and bonding interfaces.

(iii) Focused ion beam (FIB) cross-sectioning combined with TEM and SAED to examine the epitaxial stack, bonding interface, and phosphor layer at the atomic scale.

(iv) Electron-beam-induced current (EBIC) and cathodoluminescence (CL) mapping to locate recombination centers and correlate them with structural defects in each emitter.

(v) Infrared (IR) thermography and Raman thermometry to identify hot spots and thermal failure pathways.

We integrate all FA data with the chip's fabrication and testing history to construct a complete failure timeline, attributing the root cause to specific process steps, material quality, or handling procedures. This level of diagnostic depth is rarely available in commercial test houses and is highly valued by clients involved in yield improvement, supplier qualification, and technology transfer.

Our Distinctive Competencies – Integration, Expertise, and Global Compliance

What sets our dual-color LED chip testing service apart is the seamless integration of spectral, color, electrical, thermal, and reliability characterization within a single laboratory, enabling correlative analysis that is impossible when samples are shipped between multiple vendors. Our team comprises PhD-level device physicists, materials scientists, and engineers with extensive experience in III-nitride epitaxy, phosphor chemistry, and color science. We do not simply report numbers; we interpret them in terms of epitaxial quality, process integration, and device physics – for example, distinguishing between color shift caused by differential aging versus thermal crosstalk, or identifying the root cause of color point drift as phosphor degradation versus current crowding.

Our laboratory is ISO/IEC 17025 accredited for a wide range of LED test methods, and we maintain NIST-traceable calibrations for all equipment. We participate in international round-robins (e.g., NIST, PTB, CIE) to ensure global comparability. We offer rapid turnaround – typically 3–5 business days for standard testing packages, with expedited options available – and we accept samples in various forms: full wafers (up to 200 mm), diced chips on carrier tape, and packaged devices. Our data analytics platform employs machine learning to identify subtle correlations between process parameters and chip performance, accelerating yield improvement and process optimization.

We also provide custom test plans for emerging dual-color LED architectures (e.g., monolithic dual-wavelength, phosphor-converted, and hybrid) and for specific applications (e.g., tunable white lighting, automotive displays, and horticultural lighting). Our consulting services include material selection, process integration, certification strategy, and failure analysis with root-cause determination. We offer on-site sampling and mobile testing units for large-scale wafer fabs, ensuring that critical measurements can be performed without transport delays.

Comprehensive Service Modules – Tailored to Your Dual-Color Chip Type and Application

We organize our testing into modular packages to meet diverse client objectives:

Module 1 – Spectral and Color Analysis: Peak wavelength, FWHM, color coordinates, CCT, CRI, and color gamut for each emitter – essential for color point verification and binning.

Module 2 – Simultaneous Electro-Optical Characterization: DC and pulsed I-V, L-I, EQE, and WPE for each channel – for performance evaluation and efficiency droop analysis.

Module 3 – Color Mixing and Uniformity Mapping: High-resolution EL mapping, angular color uniformity, and color mixing model – for display and tunable white applications.

Module 4 – Thermal Characterization: T_j measurement, thermal crosstalk, R_th, and IR thermography – for thermal management validation.

Module 5 – Reliability and Lifetime Testing: HTOL, HTRB, WHTOL, thermal cycling, ESD, and color maintenance – for qualification and lifetime prediction.

Module 6 – Failure Analysis and Root-Cause Investigation: SEM-EDS, FIB-TEM, EBIC, CL, IR thermography, and comprehensive forensic reporting – for return analysis and process improvement.

Module 7 – Comprehensive Dual-Color Chip Qualification Package: All modules combined into a single project, with integrated correlation analysis, statistical summary, and a detailed interpretive report – suitable for product release, customer audits, or regulatory submissions.

We also design custom test plans for special requirements, such as high-frequency modulation bandwidth for visible light communication, radiation hardness for space applications, or cryogenic performance for quantum photonics.

Data Integrity, Security, and Reporting

All measurements are performed under strict SOPs, with fully traceable calibration records and environmental logging. Our Laboratory Information Management System (LIMS) records every operation, operator, and timestamp, ensuring full auditability. We use encrypted data transfer and role-based access to protect client proprietary information. Our reports include comprehensive tables, graphs, uncertainty statements, and an executive summary that translates technical findings into actionable insights. Raw data files are available upon request. A post-delivery review meeting is included to discuss results and recommend next steps.

Client Engagement and Workflow

Our engagement begins with a complimentary consultation to understand your dual-color chip type, fabrication process, intended application, and specific concerns (e.g., color shift, differential aging, or thermal crosstalk). We then propose a tailored test plan with a fixed price and timeline. Upon sample receipt, we log and inspect the samples, then commence testing. Clients receive progressive updates through a secure portal, with preliminary data shared on request. The final report is delivered in PDF format, and we offer a follow-up call to discuss the findings and their implications for your development or production.

Conclusion – Ensuring Dual-Color LED Chip Excellence from Wafer to Application

Dual-color LED chips are enabling the next generation of tunable lighting, advanced displays, and intelligent automotive systems, and their reliable performance depends on rigorous, multidimensional testing that goes beyond simple visual inspection. Our comprehensive, ISO-accredited testing service provides exactly that – a one-stop solution that combines spectral, color, electrical, thermal, and reliability analyses into a unified, interpretable picture. With our advanced instrumentation, deep materials expertise, and collaborative approach, we empower our clients to accelerate development, improve yield, and confidently bring high-quality dual-color LED chips to market. Whether you are developing tunable white emitters, RGB micro-displays, or bi-color indicators, our service delivers the clarity and confidence you need to succeed.

We invite you to contact our dual-color LED chip testing specialists to discuss your specific requirements. Let us partner with you to ensure that your dual-color chips meet the highest standards of quality, color consistency, and reliability – from the epitaxial wafer to the final application. Your journey to dual-color LED chip excellence begins with our rigorous, integrative, and actionable testing.
