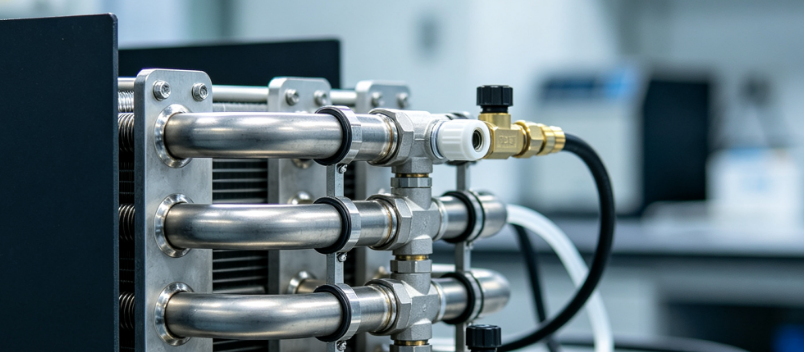

Heat Exchanger Performance Testing

Heat Exchanger Performance and Integrity Testing: Advanced Diagnostic Solutions for Thermal Efficiency, Reliability, and Life Extension

Heat exchangers are critical assets in power generation, chemical processing, HVAC, refrigeration, and automotive systems, where their thermal and hydraulic performance directly dictates overall plant efficiency, operating costs, and safety. However, the accumulation of fouling, the initiation of pitting or stress-corrosion cracking, and the gradual degradation of tube-tubesheet joints often remain undetected until a significant performance drop or a catastrophic leak occurs. Conventional monitoring—based solely on inlet/outlet temperature differences or periodic visual inspections—provides only a macroscopic view and cannot localise the onset of degradation at the tube level. Our detection service is specifically designed to provide a multi-modal, non-destructive, and highly quantitative characterisation of heat exchangers, covering thermal-hydraulic efficiency, mechanical integrity, corrosion susceptibility, and remaining life. We deliver high-accuracy measurements of overall heat transfer coefficient, fouling factor, pressure drop, tube wall thickness, pitting depth, and tube-tubesheet bond integrity, enabling plant operators, maintenance engineers, and design teams to optimise cleaning schedules, prevent unscheduled outages, and validate repairs with scientific confidence.

Why Dedicated Heat Exchanger Testing Is Indispensable for Optimised Operation and Risk Management

Heat exchanger performance degrades progressively due to scaling, particulate fouling, biofouling, and corrosion. A 10% reduction in the overall heat transfer coefficient can increase fuel consumption by 2–5% in a large power plant, while a single leaking tube can lead to cross-contamination, product loss, or environmental non-compliance. Standard shell-side pressure drop measurements or simple temperature cross-checks cannot differentiate between fouling, flow maldistribution, or tube blockage, nor can they predict the remaining wall thickness before rupture. Moreover, in critical applications (e.g., nuclear steam generators, chemical reactors), a catastrophic failure carries serious safety and financial consequences. Our testing protocols are designed to provide spatially resolved, quantitative information on the internal condition of each tube or tube bundle, enabling condition-based maintenance and accurate life prediction.

Our Core Detection Capabilities for Heat Exchangers

We operate a comprehensive heat exchanger test facility that integrates thermal performance testing, eddy current inspection, ultrasonic thickness mapping, and pressure decay techniques. The following represent our standard high-end offerings:

In-Situ Thermal Performance Testing (Thermal Rating Verification): We perform on-site thermal performance tests using a portable data acquisition system with high-accuracy thermocouples (calibrated to ±0.1 °C), pressure transducers (±0.05% full scale), and flow meters (ultrasonic clamp-on or turbine type, ±0.5% reading). We measure the hot and cold side inlet/outlet temperatures, flow rates, and pressure drops under steady-state conditions. From these data, we compute the overall heat transfer coefficient (U) using the log mean temperature difference (LMTD) method, the heat duty (Q), and the fouling factor (R_f) by comparing the measured U with the clean, design U. Our proprietary software corrects for heat losses and variable specific heats, providing an uncertainty of ±2% for the fouling factor. We can perform tests at multiple load conditions to generate a performance map for the exchanger.

Tube Wall Thickness and Corrosion Mapping Using Phased Array Ultrasonic Testing (PAUT) and Internal Rotary Inspection System (IRIS): For tubular exchangers, we employ high-frequency ultrasonic probes (5–20 MHz) in a phased array configuration to produce C‑scan images of the tube wall. We measure the remaining wall thickness at thousands of points per tube, with an accuracy of ±0.05 mm. For tubes that are not accessible from the outside (e.g., finned tubes), we use an internal rotary inspection system (IRIS) with a rotating ultrasonic mirror, achieving a 100% coverage of the tube length. We report the minimum wall thickness, average wall thickness, and the location of any pitting or general corrosion. The data is presented in colour-coded thickness maps, highlighting areas of concern.

Eddy Current Testing (ECT) for Crack and Flaw Detection: We use multi-frequency eddy current instruments with bobbin and array probes to detect axial and circumferential cracks, pitting, and wall loss in non‑ferromagnetic tubes (e.g., titanium, brass, stainless steel). The multi-frequency mode allows us to suppress support plate signals and to differentiate between internal and external defects. We provide a flaw indication report with defect depth (as a percentage of wall thickness), length, and circumferential position. For ferromagnetic tubes (e.g., carbon steel), we employ remote field eddy current (RFEC) technique, which penetrates through the tube wall to detect both inner and outer surface defects.

Pressure Drop and Flow Distribution Analysis: We measure the shell-side and tube-side pressure drop at multiple flow rates, using high-accuracy differential pressure transducers (0.1% accuracy). From the pressure drop versus flow data, we derive the friction factor and the loss coefficient for the bundle, which are sensitive to fouling, debris accumulation, or bypass flow. For shell-side maldistribution, we perform temperature scanning of the shell surface (using an infrared camera) or inject a trace gas (SF₆) and measure its concentration at multiple exit nozzles to quantify the flow uniformity.

Tube-Tubesheet Joint Integrity and Leak Testing: We perform hydrostatic or pneumatic pressure tests on the shell and tube sides (with test pressures up to 1.5× design pressure) while monitoring for pressure decay and using helium mass spectrometry leak detection (sensitivity 10⁻⁶ mbar·L/s) to localise individual tube leaks. For a more sensitive assessment, we use eddy current combined with pressure test to detect incipient cracks at the tubesheet region, which often precede full leakage. We also perform magnetic particle or dye penetrant inspection on accessible tubesheet weld joints.

Fouling and Deposit Characterisation: For chemically fouled units, we take deposit samples (from the inlet header or by removing a single tube) and perform Thermogravimetric Analysis (TGA), FTIR spectroscopy, and X-ray diffraction (XRD) to identify the composition (e.g., calcium carbonate, iron oxide, biofilms). This information allows us to recommend the most effective chemical cleaning agents and to predict the fouling rate for future operation.

Material and Metallurgical Condition Assessment: We extract small tube samples (when permitted) and perform metallographic examination (SEM/EDS) to assess grain structure, phase composition, and the presence of sensitisation or intergranular attack. We also measure hardness (using a portable hardness tester) and electrochemical potential (using a reference electrode) to assess the susceptibility to stress corrosion cracking (SCC) and chloride pitting.

Accelerated Life and Remaining Useful Life (RUL) Prediction: Based on the measured wall thickness, corrosion rates (derived from historical data or coupons), and the identified crack sizes, we apply Fitness‑for‑Service (FFS) assessment according to API 579/ASME FFS-1. We compute the remaining strength factor (RSF) and the burst pressure for each degraded tube, and we provide a tubesheet reliability curve that predicts the probability of failure as a function of operating hours. We also incorporate the fouling trajectory to project the time to reach the minimum acceptable thermal performance (i.e., when the exchanger can no longer meet process requirements). Our prediction includes a confidence interval (typically ±15% for wall thickness, ±20% for fouling).

Integrated Analytical Framework: Combining Thermal, Mechanical, and Metallurgical Data

Our unique strength is the systematic integration of thermal performance, non‑destructive inspection, and material condition data. We overlay the ultrasonic thickness maps with the eddy current flaw locations and the deposit composition analysis to identify the root cause of degradation—for example, whether pitting is due to localised flow stagnation (from a flow distribution plot) or to a specific water chemistry issue. This integrated diagnosis is more powerful than each test alone, enabling precise recommendations: changing the cleaning frequency, installing a corrosion inhibitor, modifying the inlet deflector, or replacing a specific group of tubes.

We provide a comprehensive report that includes: - Current thermal performance (U, fouling factor, pressure drop) and comparison with design. - Tube wall thickness maps with identified minimum thickness and pitting statistics. - Flaw detection results (crack locations, depth, length) from ECT/PAUT. - Flow distribution analysis and recommendations for correction. - Deposit composition and suggested cleaning method. - Remaining life prediction for the bundle and recommended next inspection interval. - Risk assessment (probability of failure, consequence of failure) for decision‑making.

Our Distinctive Advantages in Heat Exchanger Testing

Our laboratory is equipped with portable and fixed ultrasonic phased array systems, multi‑frequency eddy current instruments, and high‑accuracy thermal data acquisition units that can be deployed on‑site or used in‑house for shop‑based testing. We are accredited under ASNT SNT‑TC‑1A for NDT personnel and under ISO 17025 for thermal and pressure measurements. Our team includes mechanical engineers, corrosion specialists, and thermal scientists with over 25 years of combined experience in heat exchanger integrity and performance evaluation.

We offer flexible service packages: - Quick performance check (thermal testing only) – 1 day on‑site. - NDT bundle inspection (PAUT + ECT) – 2–3 days for a typical shell‑and‑tube exchanger. - Full condition assessment (thermal + NDT + deposit + life prediction) – 5–7 business days, with an on‑site phase of 2–3 days. - Emergency failure analysis – we offer a 24‑hour priority dispatch for critical units.

Our reports are clear, actionable, and accompanied by digital files (thickness maps, flaw data) that can be imported into maintenance management systems. We also provide consulting services to help clients interpret our findings, develop a repair or cleaning plan, and implement a long‑term monitoring strategy.

Real‑World Impact: Case Highlights from Our Testing

In a recent assignment with a large petrochemical plant, our PAUT inspection of a 2,000‑tube exchanger revealed a cluster of tubes with wall thinning exceeding 40% in the inlet region, while the rest of the bundle showed only 10% thinning. The plant was able to plug only the affected tubes (less than 5% of the total) rather than replacing the entire bundle, saving over $1M in capital costs and avoiding a 4‑week shutdown.

For a power utility, our thermal performance test showed that the feedwater heater was operating at 15% below design heat duty due to severe scaling. Our deposit analysis identified the scale as amorphous silica with a small amount of iron oxide. Based on our recommendation, the utility applied a specialised chemical cleaning programme that restored 90% of the design U and reduced annual fuel consumption by 3%.

Partner with Us for Unmatched Heat Exchanger Assurance and Optimisation

Whether you need to verify the performance of a new exchanger, diagnose a persistent fouling problem, assess the remaining life of a critical bundle, or ensure the safety of an aged unit, our detection service delivers the technical depth, precision, and actionable insights you need. We welcome customised test plans—from single‑unit assessments to fleet‑wide monitoring programmes. Let our advanced diagnostics help you maximise heat exchanger reliability, efficiency, and longevity.

Contact us today to design a testing strategy that ensures your heat exchangers perform at their best—safely and cost‑effectively.
